Bộ định thời gian OMRON H3DS
-
Mã SP4124
-
Thương hiệu
-
Xuất xứJAPAN
-
Bảo hành12 THÁNG
Dải bộ hẹn giờ tiêu chuẩn, rộng 17.5 mm, lắp trên thanh DIN.

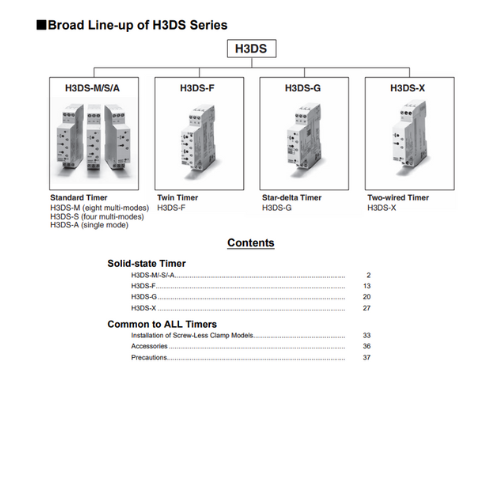

Bộ định thời gian OMRON H3DS
Công ty TNHH Ngân Anh Phát chuyên cung cấp dòng sản phẩm Bộ định thời gian OMRON H3DS chính hãng xuất xứ Japan tại thị trường Việt Nam.
Đặc điểm nổi bật của Bộ định thời gian OMRON H3DS:
• Dải nguồn cấp AC/DC rộng (24 đến 230 VAC/24 đến 48 VDC) giúp giảm số lượng mẫu bộ hẹn giờ cần lưu trữ. (24 đến 230 VAC/VDC với H3DS-XL[])
• Cơ chế khóa thông minh trên núm xoay/selector: Ngăn chặn việc vô tình thao tác hoặc thao tác trái phép trên các núm xoay và selector trên bảng điều khiển của bộ hẹn giờ. Khóa chỉ có thể được mở và khóa lại bằng khóa dạng bút tùy chọn.
• Có sẵn loại kẹp không vít. (H3DS-[]LC)
• Cung cấp nhãn dán để dễ dàng nhận diện và quản lý bộ hẹn giờ.
• Kẹp đầu cuối để mở khi giao hàng (loại đầu cuối vít).
• Khối đầu cuối bảo vệ ngón tay để đáp ứng tiêu chuẩn VDE0106/P100.
• Dễ dàng kiểm tra trình tự thông qua các đầu ra tức thời với giá trị cài đặt bằng 0 ở bất kỳ khoảng thời gian nào.
• Tích hợp tiếp điểm thân thiện với môi trường, không chứa cadmium.
• Tuân thủ EN61812-1 và IEC60664-1 4 kV/2 cho điện áp thấp, và các chỉ thị EMC.
Thông số kỹ thuật
H3DS-M/-S/-A
General
| Item | H3DS-ML[] | H3DS-SL[] | H3DS-AL[] |
|---|---|---|---|
| Operating mode | A: ON-delay (Signal or Power) B: Flicker OFF start (Signal or Power) B2: Flicker ON start (Signal or Power) C: Signal ON/OFF-delay D: Signal OFF-delay E: Interval (Signal or Power) G: Signal ON/OFF-delay J: One-shot (Signal or Power) |
A: ON-delay B2: Flicker ON start E: Interval J: One-shot |
A: ON-delay (fixed) |
| Input type | Voltage input | --- | |
| Output type | Relay: SPDT | ||
| External connections | Screw terminal, Screw-Less Clamp | ||
| Terminal block | Screw terminal type: Clamps two 2.5-mm2 max. bar terminals without sleeves. Screw-Less Clamp type: Clamps two 1.5-mm2 max. bar terminals without sleeves. |
||
| Terminal screw tightening torque |
0.98 Nm max. | ||
| Mounting method | DIN track mounting * | ||
| Attachment | Nameplate label | ||
| Approved standards | UL508, CSA C22.2 No.14 Conforms to EN61812-1, IEC60664-1 4 kV/2, VDE0106/P100 |
||
* Can be mounted to 35-mm DIN Track with a plate thickness of 1 to 2.5 mm.
Time Ranges
| Time scale display | Time range |
|---|---|
| 0.1 s | 0.1 to 1.2 s |
| 1 s | 1 to 12 s |
| 0.1 m | 0.1 to 1.2 min |
| 1 m | 1 to 12 min |
| 0.1 h | 0.1 to 1.2 h |
| 1 h | 1 to 12 h |
| 10 h | 10 to 120 h |
Note: When the time setting dial is set to "0" for any time scale, the output will operate instantaneously.
Ratings
| Rated supply voltage *1, *2 | 24 to 230 VAC (50/60 Hz)/24 to 48 VDC |
|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power reset | Minimum power-off time: 0.1 s |
| Reset voltage | 2.4 VAC/DC max. |
| Power consumption *3 | AC: 32 VA max./3.0 W max. (typical: 30 VA/2.7 W) at 230 VAC DC: 0.7 W max. (typical: 0.6 W) at 24 VDC 1.4 W max. (typical: 1.3 W) at 48 VDC |
| Voltage input | Max. permissible capacitance between inputs lines (terminals B1 and A2): 2,000 pF Load connectable in parallel with inputs (terminals B1 and A1). H-level: 20.4 to 253 VAC/20.4 to 52.8 VDC L-level: 0 to 2.4 VAC/DC |
| Control output | Contact output: 5 A at 250 VAC with resistive load (cosφ = 1) 1 A at 250 VAC with inductive load (cosφ = 0.3) 5 A at 30 VDC with resistive load (cosφ = 1) 0.15 A max. at 125 VDC with resistive load, 0.1 A max. at 125 VDC with L/R of 7 ms. The minimum applicable load is 10 mA at 5 VDC (P reference value). Contact materials: Ag-alloy |
| Ambient temperature | Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing) |
| Ambient humidity | Operating: 35% to 85% |
*1. DC ripple rate: 20% max.
*2. Since an inrush current of 0.5 A will occur when using the power supply voltage at 24 VDC, pay careful attention
when turning on or off the power supply to the Timer with a solid-state output such as a sensor.
*3. The power consumption is for mode A after the Timer counts the time-up time and for the AC input at 50 Hz. The
power consumption of the H3DS-ML includes the input circuit with the B1 and A1 terminals short-circuited.
Characteristics
| Accuracy of operating time |
±1% max. of FS (±1% ±10 ms max. at 1.2-s range) |
|---|---|
| Setting error | ±10% ±50 ms max. of FS |
| Signal input time | 50 ms min. |
| Influence of voltage | ±0.7% max. of FS (±0.7% ±10 ms max. at 1.2-s range) |
| Influence of temperature |
±5% max. of FS (±5%±10 ms max. at 1.2-s range) |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Dielectric strength | Between current-carrying metal parts and exposed non-current-carrying metal parts: 2,000 VAC for 1 min. Between control output terminals and operating circuit: 2,000 VAC for 1 min. Between contacts not located next to each other: 1,000 VAC for 1 min. |
| Vibration resistance | Malfunction: 0.5-mm single amplitude at 10 to 55 Hz Destruction: 0.75-mm single amplitude at 10 to 55 Hz |
| Shock resistance | Malfunction: 100 m/s2 3 times each in 6 directions Destruction: 1,000 m/s2 3 times each in 6 directions |
| Impulse withstand voltage |
5 kV (between power terminals) 5 kV (between current-carrying metal parts and exposed non-current-carrying metal parts) |
| Noise immunity | Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise) ±1.5 kV |
| Static immunity | Malfunction: 4 kV Destruction: 8 kV |
| Life expectancy | Mechanical: 10 million operations min. (under no load at 1,800 operations/h) Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h) * |
| EMC | (EMI) EN61812-1 Emission Enclosure: EN55011 Group 1 class B Emission AC Mains: EN55011 Group 1 class B Harmonic Current: EN61000-3-2 Voltage Fluctuation and Flickering: EN61000-3-3 (EMS) EN61812-1 Immunity ESD: IEC61000-4-2 Immunity RF-interference: IEC61000-4-3 Immunity Burst: IEC61000-4-4 Immunity Surge: IEC61000-4-5 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Voltage Dip/Interruption: IEC61000-4-11 |
| Case color | Light gray (5Y7/1) |
| Degree of protection | IP30 (Terminal block: IP20) |
| Weight | Approx. 70 g |
* For reference:
In both cases, a life of 100,000 operations can be expected.
H3DS-F
General
| Item | H3DS-F |
|---|---|
| Operating mode | Flicker-OFF/Flicker-ON start |
| Output type | Relay: SPDT |
| External connections | Screw terminal, Screw-Less Clamp |
| Terminal block | Screw terminal type: Clamps two 2.5-mm2 max. bar terminals without sleeves. Screw-Less Clamp type: Clamps two 1.5-mm2 max. bar terminals without sleeves. |
| Terminal screw tightening torque |
0.98 Nm max. |
| Mounting method | DIN track mounting * |
| Attachment | Nameplate label |
| Approved standards | UL508, CSA C22.2 No.14 Conforms to EN61812-1, IEC60664-1 4 kV/2, VDE0106/P 100 |
* Can be mounted to 35-mm DIN Track with a plate thickness of 1 to 2.5 mm.
Time Ranges
| Time scale display | Time range |
|---|---|
| 0.1 s | 0.1 to 1.2 s |
| 1 s | 1 to 12 s |
| 0.1 m | 0.1 to 1.2 min |
| 1 m | 1 to 12 min |
| 0.1 h | 0.1 to 1.2 h |
| 1 h | 1 to 12 h |
Note: When the time setting dial is set to “0” for any time scale, the output will operate instantaneously.
Ratings
| Rated supply voltage * | 24 to 230 VAC (50/60 Hz)/24 to 48 VDC |
|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power reset | Minimum power-off time: 0.1 s |
| Reset voltage | 2.4 VAC/DC max. |
| Power consumption | AC: 33 VA max./2.2 W max. (typical: 31 VA/2.0 W) at 230 VAC DC: 0.7 W max. (typical: 0.6 W) at 24 VDC 1.4 W max. (typical: 1.2 W) at 48 VDC |
| Voltage input | Max. permissible capacitance between inputs lines (terminals B1 and A2): 2,000 pF Load connectable in parallel with inputs (terminals B1 and A1). H-level: 20.4 to 253 VAC/20.4 to 52.8 VDC L-level: 0 to 2.4 VAC/DC |
| Control output | Contact output: 5 A at 250 VAC with resistive load (cosφ = 1) 1 A at 250 VAC with inductive load (cosφ = 0.3) 5 A at 30 VDC with resistive load (cosφ = 1) |
| Ambient temperature | Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing) |
| Ambient humidity | Operating: 35% to 85% |
