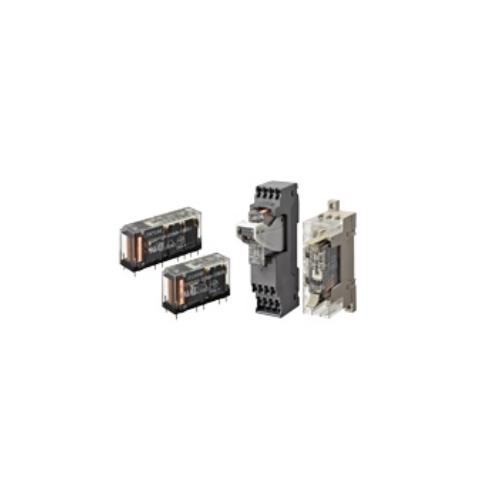

Rơ le an toàn OMRON G7SA

Công ty TNHH Ngân Anh Phát chuyên cung cấp dòng sản phẩm Rơ le an toàn OMRON G7SA chính hãng xuất xứ Japan tại thị trường Việt Nam.


Đặc điểm nổi bật của Rơ le an toàn OMRON G7SA

• Các ổ cắm đầu cuối Push-In Plus bổ sung được sử dụng để tiết kiệm công việc đi dây so với các đầu cuối vặn vít truyền thống. (Thời gian đi dây giảm 60%* so với các đầu cuối vặn vít truyền thống.)

• Rơ le với các tiếp điểm có hướng dẫn cưỡng bức (EN 61810-3, được chứng nhận bởi VDE).

• Hỗ trợ đánh dấu CE của máy móc (Chỉ thị Máy móc).

• Giúp tránh trạng thái máy nguy hiểm khi được sử dụng trong mạch khóa liên động.

• Có sẵn Rơ le bốn cực và sáu cực.

• Bố trí đầu cuối của Rơ le giúp đơn giản hóa thiết kế mẫu PWB.

• Cách điện tăng cường giữa đầu vào và đầu ra. Cách điện tăng cường giữa một số cực có cực tính khác nhau.

*Theo dữ liệu đo thực tế của OMRON.

Thông số kỹ thuật

Safety Relay Unit

Coil (4 poles)

Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW)
Rated voltage
12 VDC 30 400 110% Approx. 360
18 VDC 20 900
21 VDC 17.1 1,225
24 VDC 15 1,600
48 VDC 7.5 6,400
110 VDC 3.8 28,810 Approx. 420



Coil (6 poles)

Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW)
Rated voltage
12 VDC 41.7 288 110% Approx. 500
18 VDC 27.8 648
21 VDC 23.8 882
24 VDC 20.8 1,152
48 VDC 10.4 4,606
110 VDC 5.3 20,862 Approx. 580

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.
           2. The maximum voltage is based on an ambient operating temperature of 23°C maximum.

Contacts

Load Resistive load
Rated load 6 A at 250 VAC, 6 A at 30 VDC
Rated carry current 6 A
Max. switching voltage 250 VAC, 125 VDC
Max. switching current 6 A
Contact materials Au plating + Ag alloy

Characteristics

Safety Relay Unit

Contact resistance *1 100 mΩ max.
Operating time *2 20 ms max.
Response time *3 10 ms max.
Release time *2 20 ms max.
Must operate voltage 75% max.
Must release voltage 10% min.
Maximum
operating
frequency
Mechanical 36,000 operations/h
Rated load 1,800 operations/h
Insulation resistance *4 1,000 MΩ min.
Dielectric
Strength
*5 *6
Between coil
and contacts
4,000 VAC, 50/60 Hz for 1 min.
Between
contacts of
different olarity
4,000 VAC, 50/60 Hz for 1 min. (except for followings)
4 poles (for poles 3-4 in 4-pole Relays),
6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min.
Between
contacts of the
same polarity
1,500 VAC, 50/60 Hz for 1 min.
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock
resistance
Destruction 1,000 m/s2
Malfunction 100 m/s2
Durability
*7
Mechanical 10,000,000 operations min. (at approx. 36,000 operations/h)
Electrical 100,000 operations min. (at the rated load)
Inductive load switching
capability *8
(IEC60947-5-1)
AC15 240 VAC, 2 A
DC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A
Failure rate (P level)
(reference value *9)
5 VDC, 1 mA
Ambient operating
temperature *10
12 to 48 VDC: -40 to 85°C (with no icing or condensation)
110 VDC: -40 to 60°C (with no icing or condensation)
Ambient operating humidity 5% to 85%
Weight 4 poles: Approx. 22 g
6 poles: Approx. 25 g



Note: 1. The above values are initial values.
           2. Performance characteristics are based on coil temparature of 23°C.
*1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.
*2. These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not
       included.
*3. The response time is the time it takes for the normally open contacts to open after the coil voltage is turned OFF.
       Contact bounce time is included. Measurement conditions: Rated voltage operation, Ambient temperature: 23°C
*4. The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric
       strength was measured.
*5. Pole 3 refers to terminals 31-32 or 33-34, pole 4 refers to terminals 43-44, pole 5 refers to terminals 53-54, and
       pole 6 refers to terminals 63-64.
*6.When using a P7SA Socket, the dielectric strength between coil contacts/between contacts of different polarity is 2,500

  VAC, 50/60 Hz for 1 min.

*7. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%. For the durability
       performance to the load, refer to the Durability Curve.
*8. AC15: cosφ = 0.3, DC13: L/R = 48-ms.
*9. The failure rate is based on an operating frequency of 300 operations/min.
*10. 12 to 48 VDC:
       When operating between 70 and 85°C, reduce the rated carry current of 6 A by 0.1 A for each degree above 70°C.

  (See Fig. 1.)

       110 VDC:
       When operating between 40 and 60°C, reduce the rated carry current of 6 A by 0.27 A for each degree above 40°C.

  (See Fig. 1.)



G7SA Specifications 10

Options (order separately)

Sockets

Model Push-In Plus terminals Screw terminals PCB terminals
4 poles 6 poles 4 poles 6 poles 4 poles 6 poles
P7SA-10F-ND-PU P7SA-14F-ND-PU P7SA-10F(-ND) P7SA-14F(-ND) P7SA-10P P7SA-14P
Ambient operating temperature • With operation indicator LED/built-in diode
 P7SA-[]F-ND(-PU): -20 to +70°C
• Without operation indicator LED/built-in diode
 P7SA-[]F: -40 to +85°C
(with no icing or condensation)
-40 to +85°C
(with no icing or condensation)
Ambient operating humidity 25% to 85% 5% to 85%
Continuous carry current 6 A *1
Dielectric
strength
Between coil
and contact
terminals
4,000 VAC for 1 min. 2,500 VAC for 1 min.
Between contact
terminals of
different polarity
2,500 VAC for 1 min.
Between contact
terminals of
same polarity
1,500 VAC for 1 min.
Insulation resistance 1,000 MΩ min. *2
Weight Approx. 58 g Approx. 70 g Approx. 44 g Approx. 59 g Approx. 9 g Approx. 10 g



*1. When operating the P7SA-[]F-ND-PU at a temperature between 50 and 70°C, reduce the continuous current
       (6 A at 50°C or less) by 0.25 A for each degree above 50°C.
       When operating the P7SA-[]F-ND at a temperature between 50 and 70°C, reduce the continuous current
       (6 A at 50°C or less) by 0.3 A for each degree above 50°C.
       When operating the P7SA-[]F at a temperature between 50 and 85°C, reduce the continuous current
       (6 A at 50°C or less) by 0.1 A for each degree above 50°C.
*2. Measurement conditions: For 500 VDC applied to the same location as for dielectric strength measurement.

Short Bars (for P7SA-[]F-ND-PU)

Application Applicable
sockets
Models Maximum
carry current
Ambient operating
temperature
Ambient operating
humidity
Crossover wiring of
contact terminals
(bottom)
P7SA-[]F-ND-PU XW5S-P2.5-2[] 24 A -40 to 55°C 5% to 95%
XW5S-P2.5-3[]
XW5S-P2.5-4[]
XW5S-P2.5-5[]



Certified Standards

Safety Relay Unit

EN Standards, VDE Certified

Models Ratings Standard number Certification No. Operating coil Contact ratings
G7SA-2A2B 12, 18, 21, 24, 48, 110 VDC EN/IEC 61810-1
Electromagnetic relay EN 61810-3
Relays with forcibly guided contacts
125547 12, 18, 21, 24, 48, 110 VDC 6 A, 240 VAC (Resistive)
6 A, 30 VDC (Resistive)
G7SA-3A1B
G7SA-3A3B
G7SA-4A2B
G7SA-5A1B



UL Standards Certification (File No. E41515) Industrial Control Devices

Models Category Listed/Recognized Contact ratings Operating Coil ratings
G7SA-2A2B E41515 Recognized 6 A, 250 VAC (Resistive)
6 A, 30 VDC (Resistive)
12, 18, 21, 24, 48, 110 VDC
G7SA-3A1B
G7SA-3A3B
G7SA-4A2B
G7SA-5A1B



CSA standard CSA C22.2 No.14 Industrial Control Devices

Models Class number File No. Contact ratings Operating Coil ratings
G7SA-2A2B 3211-07 LR35535 6 A, 250 VAC (Resistive)
6 A, 30 VDC (Resistive)
12, 18, 21, 24, 48, 110 VDC
G7SA-3A1B
G7SA-4A2B
G7SA-5A1B



South Korea S-mark certified (Rated voltage 24VDC only)

Models Applicable standard number
G7SA-2A2B DC24 KS C IEC 61810-1
G7SA-3A1B DC24
G7SA-3A3B DC24
G7SA-4A2B DC24
G7SA-5A1B DC24



CQC

Models Standard number Certification No.
G7SA GB/T, 21711.1 CQC14002119869



Sockets

CE Marking Compliance

Models EMC Directive Low Voltage Directive Machinery Directive
P7SA (Excluding -P type) Not applicable Applicable Not applicable
P7SA-PU Not applicable Applicable Not applicable



The CE compliance declaration was made in combination with the Safety Relay.

EN Standards, VDE Certified

Models Ratings Standard number Certification No.
P7SA --- EN61984 40007586



EN Standards, TÜV Certified

Models Ratings Standard number Certification No.
P7SA-PU --- EN61984 R50356981



UL Standards Certification (File No. E87929) Industrial Control Devices

Models Category Listed/Recognized
P7SA SWIV2 Recognized
P7SA-PU SWIV2, SWIV8 Recognized



CSA standard CSA C22.2 No.14 Industrial Control Devices

Models Class number File No.
P7SA 3211-07, 3211-87 LR35535
P7SA-PU 3211-07, 3211-87 LR35535
