Rơ le trung gian OMRON G7T

Giá bán :
Liên hệ
Số lượng :
Tình trạng :
Còn hàng
LIÊN HỆ
Chia sẻ:
  • Mã SP
    3969
  • Thương hiệu
    OMRON
  • Xuất xứ
    JAPAN
  • Bảo hành
    12 THÁNG
Rơ le I/O kiểu mỏng tiết kiệm không gian trong tủ điện.
BẠN CẦN HỖ TRỢ?

Chat với chúng tôi:

skypengananhphat  zalongananhphat

Tư vấn - Hỗ trợ : (7h45 - 17h)

(+84) 2513 857 563

Email: Sales@ngananhphat.com

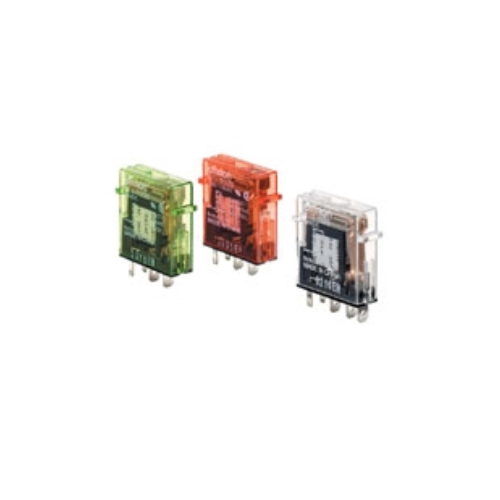

Rơ le trung gian OMRON G7T

Công ty TNHH Ngân Anh Phát chuyên cung cấp dòng sản phẩm Rơ le trung gian OMRON G7T chính hãng xuất xứ Japan tại thị trường Việt Nam.

Đặc điểm nổi bật của Rơ le trung gian OMRON G7T

• Có các dạng tiếp điểm SPST-NO, SPST-NC và SPDT cho đầu ra (chỉ SPST-NO cho đầu vào).

• Vỏ ngoài siêu mỏng với kích thước 29 (R) x 10 (S) x 32 (C) mm.

• Tất cả các rơ le đầu ra cung cấp độ bền lâu dài (1.000.000 lần hoạt động ở 5 A), trong khi tất cả các rơ le đầu vào cung cấp công suất chuyển mạch vi mô (100 μA ở 1 V).

• Được chứng nhận bởi các tiêu chuẩn UL và CSA.



Thông số kỹ thuật

Coil Ratings (Common to Both Input and Output)

Rated voltage (V) Rated current Coil
resistance		 Must operate
voltage		 Must release
voltage		 Max.
voltage		 Power
consumption
50 Hz 60 Hz
AC 100/110 8.2/9 mA 7/7.7 mA 8,700 Ω 80% max. of
rated value		 30% min. of
rated value		 110% of
rated value		 0.7 VA
200/220 4.1/4.5 mA 3.5/3.85 mA 33,300 Ω
DC 12 42 mA 290 Ω 80% max. of
rated value		 10% min. of
rated value		 110% of
rated value		 0.5 W
24 21 mA 1,150 Ω
100/110 5 mA 20,000 Ω 80% max. of
rated value		 10% min. of
rated value		 110% of
rated value		 0.5 W



Note: 1. The rated current and coil resistance values are measured at a coil temperature of 23°C. Tolerances of AC rated
              current are +15%, –20% and tolerances of coil resistance are ±15%.
           2. Four rated voltages or currents are available to single AC models used with the P7TF-05 Socket. Only three
                rated voltages or currents are available, however, when the Relay is used in place of the G7TC.
           3. The operating characteristics values are for a coil temperature of 23°C.
           4. The maximum voltage is one that is applicable to the Relay coil instantaneously at 23°C and not continuously.



Contact Ratings

Classification For input For output
Resistive load
(cosφ = 1)		 Inductive load
(L/R = 7 ms)		 Resistive load
(cosφ = 1)		 Inductive load
(cosφ = 0.4, L/R = 7 ms)
Contact mechanism Crossbar bifurcated Single
Contact material Au-clad Ag AgSnIn
Rated load 1 A at 24 VDC 0.5 A at 24 VDC 5 A at 24 VDC
2 A at 220 VAC		 2 A at 24 VDC
1 A at 220 VAC
Rated carry current 1 A 5 A
Max. switching voltage 250 VAC, 125 VDC
Max. switching current 1 A 5 A
Failure rate (reference value) 100 μA at 1 VDC 10 mA at 5 VDC



Characteristics

Contact resistance (see note 2) 50 mΩ max.
Operate time (see note 3) 15 ms max.
Release time (see note 3) 15 ms max.
Max. operating frequency Mechanical: 18,000 operations/hour
Electrical: 1,800 operations/hour (under rated load)
Insulation resistance (see note 4) 100 MΩ (at 500 VDC)
Dielectric strength Between coil and contacts: 2,000 VAC, 50/60 Hz for 1 minute
Between contacts of same polarity: 1,000 VAC, 50/60 Hz for 1 minute
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double
amplitude)
Shock resistance Malfunction: 200 m/s2
Mechanical endurance 50,000,000 operations
Electrical endurance (see note 5) Input:10,000,000 operations (10 mA) or 50,000 operations (1 A) with resistive load
2,500,000 operations (10 mA) or 20,000 operations (0.5 A) with inductive load
Output:1,000,000 operations with rated load
Error rate (level P) (Reference
value) (see note 6)		 Input: 100 μA at 1 VDC
Output: 10 mA at 5 VDC
Ambient temperature Operating: -40°C to 70°C (with no icing or condensation)
Ambient humidity Operating: 5% to 85% (with no icing or condensation)
Weight Approx. 17 g



Note: 1. The above values are all initial values.
           2. The contact resistance was measured with 1 A at 5 VDC using the voltage drop method.
           3. The operate and the release times were measured with the rated voltage imposed with any contact bounce
                 ignored at an ambient temperature of 23°C.
           4. The insulation resistance was measured with a 500-VDC megger applied to the same places as those used
                 for checking the dielectric strength.
           5. The electrical endurance was measured at an ambient temperature of 23°C.
           6. This value was measured at a switching frequency of 120 operations per minute.



Socket Ratings

Features

  • Easily mounts or dismounts the G7T I/O Relay.
  • Also mounts the Indicator Module (with surge suppressing function).
  • Only 19 mm in width.
  • Terminals corresponding to the NO and NC contacts of a Relay are arranged on top of the Socket to enhance maintainability.
  • Also permits mounting of the G3TA Solid-state I/O Relay.

Specifications

Model P7TF-05
Contact resistance 10 mΩ max.
Dielectric strength 2,000 VAC for 1 minute
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Vibration resistance 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
Shock resistance 1,000 m/s2
Ambient temperature Operating:-40°C to 70°C (with no icing or condensation)
Ambient Humidity Operating: 5% to 85%RH
Weight Approx. 28 g

* Measurement condition: 1 A at 5 VDC.
