Rơ le trung gian OMRON G6D-F4BU
-
Mã SP4083
-
Thương hiệu
-
Xuất xứJAPAN
-
Bảo hành12 THÁNG
Rơ le trung gian OMRON G6D-F4BU
Công ty TNHH Ngân Anh Phát chuyên cung cấp dòng sản phẩm Rơ le trung gian OMRON G6D-F4BU chính hãng xuất xứ Japan tại thị trường Việt Nam.

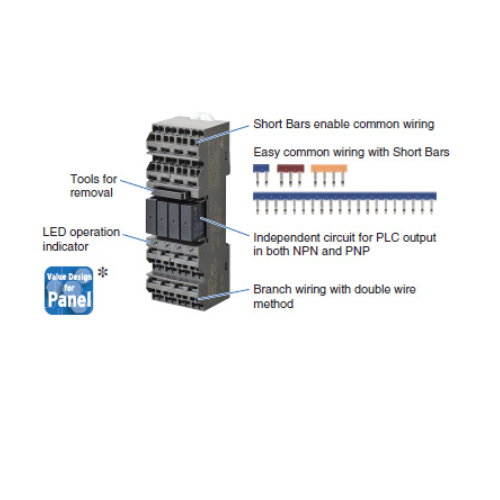

Đặc điểm nổi bật của Rơ le trung gian OMRON G6D-F4BU:
-
Đạt mức đánh giá 5 A nhờ thiết kế tối ưu, phù hợp với nhiều ứng dụng khác nhau (công nghệ Push-In Plus).
-
Đầu nối Push-In Plus giúp giảm khối lượng công việc và không cần siết chặt lại.
-
Thanh nối ngắn (đặt hàng riêng) đảm bảo đi dây chung và đi dây chéo dễ dàng giữa các rơ-le đầu cuối liền kề.
-
Phương pháp đấu dây kép cho phép đi dây nhánh (công nghệ Push-In Plus).
-
Mỗi rơ-le có cuộn dây và tiếp điểm độc lập, tương thích với đầu ra PLC (hỗ trợ cả NPN và PNP).
-
Có sẵn các mô hình rơ-le cơ học và rơ-le MOSFET công suất (dành cho tần số tiếp điểm cao).
-
Bao gồm đèn LED hiển thị trạng thái hoạt động, diode hấp thụ xung cuộn dây và dụng cụ tháo rơ-le dễ dàng như thiết bị tiêu chuẩn.
-
Chứng nhận UL và CSA cho các mẫu tiêu chuẩn.
Chứng nhận VDE cho đầu nối vít, chứng nhận TÜV cho đầu nối Push-In Plus.
Mức bảo vệ IP20 dành cho các mẫu Push-In Plus.
Thông số kỹ thuật
Ratings
Relay Specification
Coil Ratings (per G6D Relay)
| Operation coil rating |
Rated current (mA) |
Coil resistance (Ω) |
Must operate voltage (V) |
Must release voltage (V) |
Max. voltage (V) |
Power consumption (mW) |
|
|---|---|---|---|---|---|---|---|
| DC | 12 | 18.7 | 720 | 70% max.* |
10% min. |
130% | Approx. 200 |
| 24 | 10.5 | 2,880 | |||||
Note:
1. Rated current and coil resistance were measured at a coil temperature of 23°C with a tolerance of ±20%.
2. Performance characteristic data are measured at a coil temperature of 23°C.
3. The maximum allowable voltage is the maximum value of the operating voltage for the relay coil operating power supply. There is no continuous allowance.
4. The rated current includes the terminal’s LED current.
* The must operate voltage is 75% or less of the rated voltage if the relay is mounted in the upside down.
Contact Ratings (per G6D Relay)
G6D-F4PU (Model with Push-In Plus technology)
| Load | Resistive load (cosφ = 1) |
|---|---|
| Rated load | 5 A at 250 VAC, 5 A at 30 VDC |
| Rated carry current | 5 A |
| Max. switching voltage | 250 VAC, 30 VDC |
| Max. switching current | 5 A |
| Max. switching capacity (reference value) | 1,250 VA, 150 W |
G6D-F4B (Model with Screw terminal)
| Load | Resistive load (cosφ = 1) |
|---|---|
| Rated load | 3 A at 250 VAC, 3 A at 30 VDC |
| Rated carry current * | 5 A |
| Max. switching voltage | 250 VAC, 30 VDC |
| Max. switching current * | 5 A |
| Max. switching capacity (reference value) * | 1,250 VA, 150 W |
* The specifications become 3 A, 750 VA, and 90 W when all four outputs are powered at the same time.
Characteristics
| Model | G6D-F4PU (Model with Push-In Plus technology) |
|
|---|---|---|
| Relay output | ||
| Contact resistance *1 | 100 mΩ max. | |
| Operate time *2 | 10 ms max. | |
| Release time *2 | 10 ms max. | |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) | |
| Dielectric strength |
Between coil and contacts |
2,000 VAC, 50/60 Hz for 1 min |
| Between contacts of the same polarity |
750 VAC, 50/60 Hz for 1 min | |
| Shock resistance voltage (between coil and contacts) |
4,000 V (1.2 × 50 μs) | |
| Vibration re- sistance |
Destruction | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Malfunction | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
|
| Shock resistance |
Destruction | 500 m/s2 |
| Malfunction | 100 m/s2 | |
| Endurance | Mechanical | 20,000,000 operations min. (switching frequency: 18,000 operations/hr) |
| Electrical *2 | 70,000 operations min. (5 A at 250 VAC, resistive load) 70,000 operations min. (5 A at 30 VDC, resistive load) (at 1,800 switching frequencies/hr) |
|
| Failure rate P Level (reference value *3) |
10 mA at 5 VDC | |
| Ambient operating temperature, Ambient storage temperature |
-25 to 55°C (with no icing) | |
| Ambient operating humidity | 45% to 85% | |
| LED color | Yellow | |
| Sealing | IP20 | |
| Weight | Approx. 86 g | |
Note: The data shown above are initial values.
*1. Measurement condition: 1 A at 5 VDC
*2. Ambient temperature condition: 23°C
*3. This value is measured at 120 switching frequencies/min.
| Model | G6D-F4B (Model with Screw terminal) |
|
|---|---|---|
| Relay output | ||
| Contact resistance *1 | 100 mΩ max. | |
| Operate time *2 | 10 ms max. | |
| Release time *2 | 10 ms max. | |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) | |
| Dielectric strength |
Between coil and contacts |
2,000 VAC, 50/60 Hz for 1 min |
| Between contacts of the same polarity |
750 VAC, 50/60 Hz for 1 min | |
| Shock resistance voltage (between coil and contacts) |
4,000 V (1.2 × 50 μs) | |
| Vibration re- sistance |
Destruction | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Malfunction | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
|
| Shock resistance |
Destruction | 500 m/s2 |
| Malfunction | 100 m/s2 | |
| Endurance | Mechanical | 20,000,000 operations min. (switching frequency: 18,000 operations/hr) |
| Electrical *2 | 200,000 operations min. (3 A at 250 VAC, resistive load) 200,000 operations min. (3 A at 30 VDC, resistive load) (at 1,800 switching frequencies/hr) |
|
| Failure rate P Level (reference value *3) |
10 mA at 5 VDC | |
| Ambient operating temperature, Ambient storage temperature |
-25 to 55°C (with no icing) | |
| Ambient operating humidity | 45% to 85% | |
| LED color | Yellow | |
| Sealing | --- | |
| Weight | Approx. 65 g | |
Note: The data shown above are initial values.
*1. Measurement condition: 1 A at 5 VDC
*2. Ambient temperature condition: 23°C
*3. This value is measured at 120 switching frequencies/min.
Ratings
Power MOS FET Relay Specifications
Input (per G3DZ Power MOS FET Relay)
| Rated voltage |
Operating voltage |
Must operate voltage level |
Must release voltage level |
Input impedance |
Rated current |
|
|---|---|---|---|---|---|---|
| DC | 12 | 9.6 to 14.4 VDC | 9.6 VDC max. | 1 VDC min. | 2 kΩ ±20% | 8.0 mA ±20% |
| 24 | 19.2 to 28.8 VDC | 19.2 VDC max. | 4 kΩ ±20% | 8.2 mA ±20% | ||
Note: The rated current includes the terminal’s LED current.
Output (per G3DZ Power MOS FET Relay)
| Rated operating voltage |
Load voltage range |
Load current | Inrush current resistance |
|---|---|---|---|
| 5 to 240 VAC 5 to 100 VDC |
3 to 264 VAC 3 to 125 VDC |
100 μ to 0.3 A | 6 A (10 ms) |
Note: There is no output polarity for the G3DZ.
Characteristics
| Model | G3DZ-F4PU (Model with Push-In Plus technology) |
|---|---|
| Power MOS FET relay output | |
| Must operate time | 10 ms max. |
| Release time | 15 ms max. |
| Output ON-resistance | 2.4 Ω max. |
| Leakage current at OFF state | 10 μA max. (at 125 VDC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength between I/O | 2,000 VAC, 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Shock resistance | 500 m/s2 |
| Ambient operating temperature, Ambient storage temperature |
-25 to 55°C (with no icing) |
| Ambient operating humidity | 45% to 85% |
| LED color | Yellow |
| Sealing | IP20 |
| Weight | Approx. 86 g |
| Model | G3DZ-F4B (Model with Screw terminal) |
|---|---|
| Power MOS FET relay output | |
| Must operate time | 10 ms max. |
| Release time | 15 ms max. |
| Output ON-resistance | 2.4 Ω max. |
| Leakage current at OFF state | 10 μA max. (at 125 VDC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength between I/O | 2,000 VAC, 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| Shock resistance | 500 m/s2 |
| Ambient operating temperature, Ambient storage temperature |
-25 to 55°C (with no icing) |
| Ambient operating humidity | 45% to 85% |
| LED color | Yellow |
| Sealing | --- |
| Weight | Approx. 65 g |
Ratings for Safety Standard Certification
The rated values for safety standard certification are not the same as individually defined performance values. Always check the specifications before use.
G6D-F4PU/G3DZ-F4PU
UL-certified Models (File No. E41515)
| Model | Standard number |
Category | Listed/ Recognized Classification |
Operating coil ratings |
Number of poles |
Contact ratings | Operations |
|---|---|---|---|---|---|---|---|
| G6D-F4PU | UL508 | NRNT/7 | Listed | 12 VDC 24 VDC |
4 | Rated load voltage 250 VAC 30 VDC Load Current, General Use and Resistive 5 A |
6,000 operations. |
| G3DZ-F4PU | Rated load voltage 5-240 VAC 5-100 VDC Load Current, General Use and Resistive 0.3 A |
--- | |||||
| P6DF-F4PU | SWIV2 | Recognized | 5 A, 250 V | --- |
CSA-certified Models (File No. LR35535)
| Model | Standard number | Class number | Operating coil ratings |
Number of poles |
Contact ratings | Operations |
|---|---|---|---|---|---|---|
| P6DF-F4PU | C22.2 NO. 14 | CLASS 3211 07 | 12 VDC 24 VDC |
4 | 5 A, 250 V | --- |
TÜV Rheinland Certification (Certification No.R50429253)
| Model | Operating Coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| G6D-F4PU | 12 VDC 24 VDC |
4 | AC250 V, 5 A (Res.) DC30 V, 5 A (Res.) |
70,000 operations 70,000 operations |
TÜV Rheinland Certification (Certification No.R50429249)
| Model | Operating Coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| G3DZ-F4PU | 12 VDC 24 VDC |
4 | AC5-240 V, 5 A (Res.) DC5-100 V, 5 A (Res.) |
--- |
TÜV Rheinland Certification (Certification No.50429224)
| Model | Operating Coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| P6DF-F4PU | 12 VDC 24 VDC |
4 | AC250 V, 5 A DC100 V, 5 A |
--- |
G6D-F4B/G3DZ-F4B
UL-certified Models (File No. E87929)
| Model | Standard number |
Category | Listed/ Recognized Classification |
Operating coil ratings |
Number of poles |
Contact ratings | Operations |
|---|---|---|---|---|---|---|---|
| G6D-F4B | UL508 | SWIV2 | Recognized | 12 VDC 24 VDC |
4 | Rated load voltage 250 VAC 30 VDC Load Current 5 A, Resistive |
6,000 operations. |
| G3DZ-F4B | Rated load voltage 3-264 VAC 3-125 VDC Load Current 0.3 A |
--- |
CSA-certified Models (File No. LR35535)
| Model | Standard number |
Class number | Operating coil ratings |
Number of poles |
Contact ratings | Operations |
|---|---|---|---|---|---|---|
| G6D-F4B | C22.2 NO. 14 | CLASS 3211 07 | 12 VDC 24 VDC |
4 | Rated load voltage 250 VAC 30 VDC Load Current 5 A, Resistive |
--- |
| G3DZ-F4B | Rated load voltage 3-264 VAC 3-125 VDC Load Current 0.3 A, Resistive |
--- |
VDE Certification (Certification No.40017757)
| Model | Operating coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| G6D-F4B | 12 VDC 24 VDC |
4 | 250 VAC, 3 A 24 VDC, 3 A |
--- |
VDE Certification (Certification No.40046252)
| Model | Operating coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| G3DZ-F4B | 12 VDC 24 VDC |
4 | 5-240 VAC, 0.3 A 5-100 VDC, 0.3 A |
--- |
VDE Certification (Certification No.40046241)
| Model | Operating coil ratings | Number of poles | Contact ratings | Operations |
|---|---|---|---|---|
| P6DF-F4B | 12 VDC 24 VDC |
4 | 250 VAC, 0.3 A | --- |
