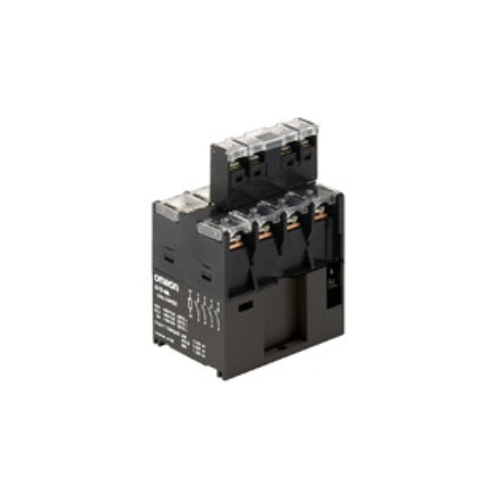

Rơ le nguồn OMRON G7Z
-
Mã SP3981
-
Thương hiệu
-
Xuất xứJAPAN
-
Bảo hành12 THÁNG
Rơ le công suất đa cực cho dải dòng điện contactor có khả năng mang và chuyển mạch 40 A ở 440 VAC.
Rơ le nguồn OMRON G7Z
Công ty TNHH Ngân Anh Phát chuyên cung cấp dòng sản phẩm Rơ le nguồn OMRON G7Z chính hãng xuất xứ Japan tại thị trường Việt Nam.
Đặc điểm nổi bật của Rơ le nguồn OMRON G7Z
• Một cực có thể chịu tải 40 A. Tiếp điểm NO chuẩn UL (tải trở 40 A 480 VAC, 60 Hz, 80.000 lần hoạt động). Tiếp điểm NO chuẩn EN 60947-4-1 (AC1 40 A 440 VAC, 50/60 Hz, 80.000 lần hoạt động).
• Lý tưởng để cung cấp điện cho các biến tần công nghiệp, trình điều khiển servo và các thiết bị khác, và chuyển đổi nguồn điện cho động cơ và các thiết bị khác.
• Khả năng tải tối đa 160 A khi sử dụng kết nối song song 4 cực.
• Chứng nhận EN 60947-4-1 cho cơ chế tiếp điểm gương khi kết hợp Rơ le với Khối Tiếp Điểm Phụ.
• Tuân thủ tiêu chuẩn PV của châu Âu (VDE0126).
• Giảm khoảng 30% tiếng ồn vận hành so với contactor điện từ tiêu chuẩn.* (Từ khoảng 100 dB giảm còn khoảng 70 dB.)
• Thể tích giảm khoảng 50% so với contactor điện từ tiêu chuẩn* giúp thu nhỏ bảng điều khiển.
*Theo điều tra của OMRON về thông số IIEC-AC1 50 A.

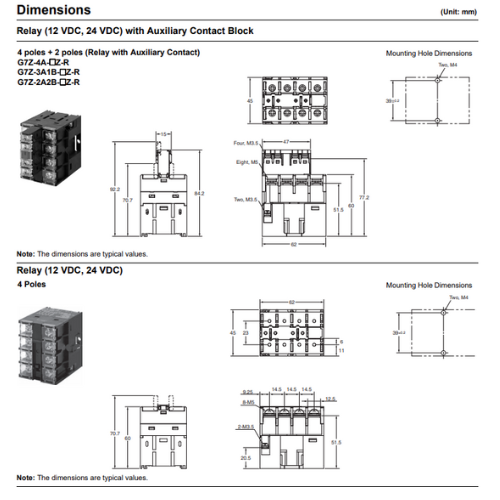

Thông số kỹ thuật
Ratings
Coil
| Item | Rated current (mA) |
Coil resistance (Ω) |
Must operate voltage |
Must release voltage |
Maximum voltage |
Power consumption (W) |
|---|---|---|---|---|---|---|
| Rated voltage | Percentage of rated voltage | |||||
| 12 VDC | 308 | 39 | 75% max. | 10% min. | 110% | Approx. 3.7 |
| 24 VDC | 154 | 156 | ||||
Note: 1. Rated current and coil resistance were measured at a coil temperature of 23°C with coil resistance of ±15%.
2. Operating characteristics were measured at a coil temperature of 23°C.
3. The maximum allowable voltage is the maximum value of the fluctuation range for the Relay coil operating
power supply and was measured at an ambient temperature of 23°C.
There is, however, no continuous allowance.
Contacts
Relay, Relay with Auxiliary Contact Block
| Model | G7Z-4A-[]Z-R, G7Z-3A1B-[]Z-R, G7Z-2A2B-[]Z-R | |||
|---|---|---|---|---|
| Load | Resistive load | Inductive load cosφ = 0.3 | Resistive load L/R = 1 ms | |
| Contact structure | Double break | |||
| Contact material | Ag alloy | |||
| Rated load | NO | 40 A at 440 VAC | 22 A at 440 VAC | 5 A at 110 VDC |
| NC | 25 A at 440 VAC | 10 A at 440 VAC | 5 A at 110 VDC | |
| Rated carry current | NO | 40 A * | ||
| NC | 25 A | |||
| Maximum contact voltage | 480 VAC | 125 VDC | ||
| Maximum contact current | NO | 40 A | 22 A | 5 A |
| NC | 25 A | 10 A | 5 A | |
| Maximum switching capacity | NO | 17,600 VA | 9,680 VA | 550 W |
| NC | 11,000 VA | 4,400 VA | 550 W | |
| Failure rate P value (reference value) | 2 A at 24 VDC | |||
Note: The ratings for the auxiliary contact block mounted on the G7Z are the same as those for the G73Z auxiliary contact
block.
* Set of Relay and Auxiliary Contact Block: 45 to 60°C; for the continuous carry current, reduce 40 A by 0.7 A/°C.
(See Fig. 1.)
Auxiliary Contact Block
| Item | G73Z-20Z-R, G73Z-11Z-R, G73Z-02Z-R | ||
|---|---|---|---|
| Resistive load | Inductive load cosφ = 0.3 | Resistive load L/R = 1 ms | |
| Contact structure | Single break | ||
| Contact material | Au clad + AgNi | ||
| Rated load | 1 A at 440 VAC | 0.5 A at 440 VAC | 0.5 A at 110 VDC |
| Rated carry current | 1A | ||
| Maximum contact voltage | 480 VAC | 125 VDC | |
| Maximum contact current | 1A | 0.5 A | |
| Maximum switching capacity | 440 VA | 220 VA | 55 W |
| Failure rate P value (reference value) |
1 mA at 1 VDC | ||
Characteristics
| Classification | Relay with auxiliary contact block *5 | Auxiliary contact block | |
|---|---|---|---|
| Model | G7Z-4A-[]Z-R, G7Z-3A1B-[]Z-R, G7Z-2A2B-[]Z-R |
G73Z-20Z-R, G73Z-11Z-R, G73Z-02Z-R |
|
| Contact resistance *1 | 400 mΩ max. | 100 mΩ max. | |
| Operating time *2 | 50 ms max. | ||
| Release time *2 | 50 ms max. | ||
| Maximum operating frequency |
Mechanical | 1,800 operations/h | |
| Rated load | 1,200 operations/h | ||
| Insulation resistance *3 | 1,000 MΩ min. | ||
| Dielectric strength |
Between coil and contacts | 4,000 VAC, 50/60 Hz for 1 min | --- |
| Between contacts of different polarity |
4,000 VAC, 50/60 Hz for 1 min | ||
| Between contacts of the same polarity |
2,000 VAC, 50/60 Hz for 1 min | ||
| Impulse withstand voltage |
Between coil and contacts | 10 kV, 1.2 × 50 μs | --- |
| Between contacts of different polarity |
10 kV, 1.2 × 50 μs | ||
| Between contacts of the same polarity |
4.5 kV, 1.2 × 50 μs | 3.0 kV, 1.2 × 50 μs | |
| Vibration resistance |
Destruction | 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) | |
| Malfunction | NO: 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) NC: 10 to 32 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude) |
||
| Shock resistance |
Destruction | Screw mounting: 700 m/s2, DIN Track mounting: 500 m/s2 | |
| Malfunction | NO: 100 m/s2 NC: 25 m/s2 |
||
| Durability | Mechanical | 1,000,000 operations min. (at 1,800 operations/h, contact no load) | |
| Electrical *4 | AC resistive load: 80,000 operations AC inductive load: 80,000 operations DC resistive load: 100,000 operations (at 1,200 operations/h, rated load) |
||
| Failure rate (P level) (reference value) *6 |
2 A at 24 VDC | 1 mA at 1 VDC | |
| Ambient operating temperature | -25 to 60°C (with no icing or condensation) | ||
| Ambient operating humidity | 5% to 85% | ||
| Weight | Approx. 330 g | Approx. 18 g | |
Note: The above values are initial values.
*1. The contact resistance for the Relay (G7Z) was measured with 1 A at 5 VDC using the voltage drop method.
The contact resistance for the auxiliary contact block (G73Z) was measured with 0.1 A at 5 VDC using the voltage
drop method.
*2. The operate time was measured with the rated voltage imposed with any contact bounce ignored at the ambient
temperature of 23℃.
*3. The insulation resistance was measured with a 1,000-VDC megohmmeter applied to the same places as those used
for checking the dielectric strength.
*4. The electrical endurance was measured at an ambient temperature of 23℃.
*5. The specifications for the auxiliary contact block mounted on the G7Z are the same as those for the G73Z auxiliary
contact block.
*6. The failure rate is based on an operating frequency of 1,800 operations/h.
Approved Standards
UL Standard: (File No. E41643)
| Classifi-cation | Con-tact Mecha-nism of Auxi-liary Con-tacts |
Model | Num-ber of poles |
Contact ratings | Number of test opera-tions |
Coil ratings |
Category | Listed/ Recog-nized |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Relay with Auxiliary Contact Block |
Single-break models |
G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R |
4 poles + 2 poles (Relay unit + auxi-liary con-tact) |
NO contact |
Relay | 40 A, 480 VAC, 60 Hz (Resistive) |
80,000 | 12, 24 VDC |
NLDX2, NLDX8 |
Recog-nized |
| 5 A, 120 VDC (Resistive) |
100,000 | |||||||||
| 22 A, 480 VAC, 60 Hz (General Use) |
100,000 | |||||||||
| Auxiliary Contact |
D300 (1-A current applied) |
--- | ||||||||
| NC contact |
Relay | 25 A, 480 VAC, 60 Hz (Resistive) 5 A, 120 VDC (Resistive) 10 A, 480 VAC, 60 Hz (General Use) |
100,000 | |||||||
| Auxiliary Contact |
D300 (1-A current applied) |
--- | ||||||||
| Relay | --- | G7Z-4A G7Z-3A1B G7Z-2A2B |
4 poles (Relay) |
NO contact |
(Relay) | 40 A, 480 VAC, 60 Hz (Resistive) |
80,000 | 12, 24 VDC |
NLDX2, NLDX8 |
Recog-nized |
| 5 A, 120 VDC (Resistive) |
100,000 | |||||||||
| 22 A, 480 VAC, 60 Hz (General Use) |
100,000 | |||||||||
| NC contact |
25 A, 480 VAC, 60 Hz (General Use) |
100,000 | ||||||||
| 5 A, 120 VDC (Resistive) |
||||||||||
| 10 A, 480 VAC, 60 Hz (General Use) |
||||||||||
| Auxiliary Contact Block |
Single-break models |
G73Z-20Z-R G73Z-11Z-R G73Z-02Z-R |
2 poles (Auxi-liary Con-tact Block) |
NO contact |
(Auxiliary Contact) |
D300 (1-A current applied) |
--- | --- | NLDX2, NLDX8 |
Recog-nized |
| NC contact |
D300 (1-A current applied) |
|||||||||
CSA Standard: CSA Certification by cUL
EN Standard/TÜV Certification: EN 60947-4-1 (Certification No. R50079155)
| Category | Contact Mechanism of Auxiliary Contacts |
Model | Number of poles |
Contact ratings | ||
|---|---|---|---|---|---|---|
| Relay with Auxiliary Contact Block |
Single-break models |
G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R |
4 poles + 2 poles (Relay unit + auxiliary contact) |
NO contact | Relay | AC-1: 40 A 440 V 50/60 Hz AC-3: 16 A 440 V 50/60 Hz DC-1: 5 A 110 V |
| Auxiliary Contact |
AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V |
|||||
| NC contact | Relay | AC-1: 25 A 440 V 50/60 Hz DC-1: 5 A 110 V |
||||
| Auxiliary Contact |
AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V |
|||||
| Relay | --- | G7Z-4A G7Z-3A1B G7Z-2A2B |
4 poles (Relay) |
NO contact | (Relay) | AC-1: 40 A 440 V 50/60 Hz AC-3: 16 A 440 V 50/60 Hz DC-1: 5 A 110 V |
| NC contact | AC-1: 25 A 440 V 50/60 Hz DC-1: 5 A 110 V |
|||||
| Auxiliary Contact Block |
Single-break models |
G73Z-20Z-R G73Z-11Z-R G73Z-02Z-R |
2 poles (Auxiliary Contact Block) |
NO contact | (Auxiliary Contact) |
AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V |
| NC contact | AC-15: 0.3 A 440 V 50/60 Hz DC-13: 0.3 A 110 V |
|||||
CCC Certification
| Classification | Contact Mechanism of Auxiliary Contacts |
Model | Standard No. | Certification No. |
|---|---|---|---|---|
| Relay with Auxiliary Contact Block |
Single-break models | G7Z-4A-20Z-R G7Z-4A-11Z-R G7Z-4A-02Z-R G7Z-3A1B-20Z-R G7Z-3A1B-11Z-R G7Z-3A1B-02Z-R G7Z-2A2B-20Z-R G7Z-2A2B-11Z-R G7Z-2A2B-02Z-R |
GB/T 14048.4 | 2024010304685837 |
| Relay | --- | G7Z-4A G7Z-3A1B G7Z-2A2B |
GB/T 14048.4 |
