Stepper Motor Nema 16 - 5 Phase
Price :
Contact
Quantity :
Status :
In Stock
DO YOU NEED SUPPORT ?
Product Description
STEPPER MOTOR NEMA 16 - 5 PHASE - 16H5C - 39MM
Models :
- 16H5C3508
- 16H5C4510
- 16H5C8515
General Specifications :
- Step Accuracy : ±5%
- Resistance Accuracy : ±10%
- Inductance Accuracy : ±20%
- Temperature Rise : 80°C MAX.
- Ambient Temperature Range : -20°C~ +50°C
- Storage Temperature Range : -30°C~ +60°C
- Insulation Resistance : 100M Ω MIN. 500V DC
- Dielectric Strength : 500V AC 1min
- Radial Play : 0.02mm MAX. (450g Load)
- End Play : 0.08mm MAX. (450g Load)
- Max. radial force : 28N
- Max. axial force : 10N
Electrical Specifications :
| Series Model |
Stepo Angle (deg) |
Motor Length (mm) |
Rate Current (A) |
Phase Resistance (Ohm |
Phase Inductance (mH) |
Holding Torque (N.cm Min) |
Detent Torque (N.cm Max) |
Rotor Inertia (g.cm²) |
Lead Wire (No.) |
Motor Weight (g) |
| 16H5C3508 | 0.36 | 31 | 0.75 | 1.8 | 1.8 | 7.5 | 0.3 | 14 | 5 | 600 |
| 16H5C4510 | 0.36 | 44 | 1.0 | 2.1 | 1.6 | 15 | 0.5 | 25 | 5 | 600 |
| 16H5C8515 | 0.36 | 50 | 1.5 | 0.77 | 1.6 | 30 | 3.5 | 28 | 5 | 780 |

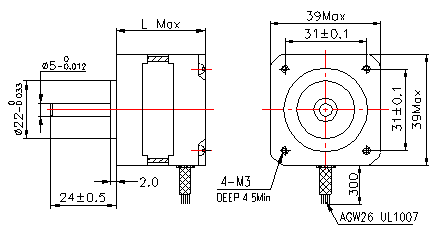

Dimensions and Wiring Diagram :
