Stepper Motor 5 Phase 34H5B Series
Price :
Contact
Quantity :
Status :
In Stock
DO YOU NEED SUPPORT ?
Product Description
STEPPER MOTOR 5 PHASE 34H5B SERIES - NEMA 34
Ngan Anh Phat Co., Ltd đơn vị chuyên phân phối và cung cấp các dòng sản phẩm Stepper Motor 5 Phase 34H5B Series - Nema 34 chính hãng giá tốt tại thị trường Viet Nam.
Models :
- 34H5B6508
- 34H5B6517
- 34H5B9508
- 34H5B9517
- 34H5B2508
- 34H5B2517
General Specifications :
- Step Accuracy : ±5%
- Resistance Accuracy : ±10%
- Inductance Accuracy : ±20%
- Temperature Rise : 80°C MAX.
- Ambient Temperature Range : -20°C~ +50°C
- Storage Temperature Range : -30°C~ +60°C
- Insulation Resistance : 100M Ω MIN. 500V DC
- Dielectric Strength : 820VAC, 1s, 3mA
- Radial Play : 0.02mm MAX. (450g Load)
- End Play : 0.08mm MAX. (450g Load)
- Max. radial force : 220N
- Max. axial force : 60N
Electrical Specifications :
| Series Model |
Stepo Angle (deg) |
Motor Length (mm) |
Rate Current (A) |
Phase Resistance (Ohm |
Phase Inductance (mH) |
Holding Torque (N.cm Min) |
Detent Torque (N.cm Max) |
Rotor Inertia (g.cm²) |
Lead Wire (No.) |
Motor Weight (Kg) |
| 34H5B6508 | 0.72 | 63 | 0.8 |
5.5 |
24 | 180 | 4.5 | 0.64 | 5 | 2.0 |
| 34H5B6517 | 0.72 | 63 | 1.7 | 1.5 | 5.6 | 180 | 4.5 | 0.64 | 5 | 2.0 |
| 34H5B9508 | 0.72 | 92 | 0.8 | 8.2 | 41 | 320 | 6.5 | 1.3 | 5 | 2.8 |
| 34H5B9517 | 0.72 | 92 | 1.7 | 2 | 11 | 320 | 6.5 | 1.3 | 5 | 2.8 |
| 34H5B2508 | 0.72 | 122 | 0.8 | 10 | 55 | 450 | 10.5 | 1.9 | 5 | 4.2 |
| 34H5B2517 | 0.72 | 122 | 1.7 | 2 | 12 | 450 | 10.5 | 1.9 | 5 | 4.2 |

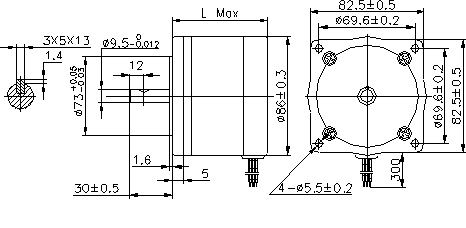

Dimensions and Wiring Diagram :
