Stepper Motor Nema 14 14H2M -35mm
Price :
Contact
Quantity :
Status :
In Stock
DO YOU NEED SUPPORT ?
Product Description
Nema 14, 14H2M Stepper Motor -35mm(0.9 degree)
Specifications
- Step Accuracy : ±5%
- Resistance Accuracy : ±10%
- Inductance Accuracy : ±20%
- Temperature Rise : 80°C MAX.
- Ambient Temperature Range : -20°C~ +50°C
- Storage Temperature Range : -30°C~ +60°C
- Insulation Resistance : 100M Ω MIN. 500V DC
- Dielectric Strength : 500V AC 1min
- Radial Play : 0.02mm MAX. (450g Load)
- End Play : 0.08mm MAX. (450g Load)
- Max. radial force : 28N
- Max. axial force : 10N
| Electrical Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

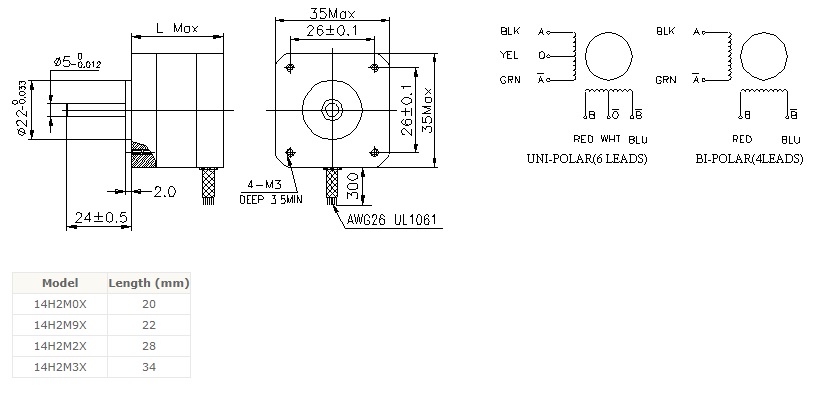

Kích thước & Sơ đồ đấu dây
Specifications
