Manual Motor Starter J7MC OMRON

Name: Ngân Anh Phát
Address: Đ3, Đồng Khởi, Tổ 23, KP 7, Phường Bình Đa, Thành phố Biên Hoà, Tỉnh Đồng Nai, Việt Nam, Biên Hòa, Đồng Nai, 810000, VIỆT NAM
Telephone: (+84) 2513 857 563

Price :

Contact

Quantity :

Status :

In Stock

Add to Cart

BUY NOW

Request a Quote

Product No

4102
Brand

OMRON

Origin

JAPAN
Guarantee

12 MONTHS

MPCB system, protection from Overload, Phase failure and Short Circuit

DO YOU NEED SUPPORT ?

Chat with us :

ngananhphat ngananhphat

(+84) 2513 857 563

Email: Sales@ngananhphat.com

Product Description

Manual Motor Starter J7MC OMRON

Ngan Anh Phat Co., Ltd specializes in providing genuine products Manual Motor Starter J7MC OMRON from the manufacturer Omron, originating from Japan, to the Vietnamese market.

Outstanding features of the Manual Motor Starter J7MC OMRON

comprehensive protection: provides protection against overload, phase failure, and short circuit, ensuring motor safety during operation.
push-in plus connection technology: saves time in wiring and maintenance.
compatibility with j7kc contactor: suitable for motor control according to ac-3 standards, with power ratings up to 2.2 kw (200 to 240 vac) or 5.5 kw (380 to 440 vac).

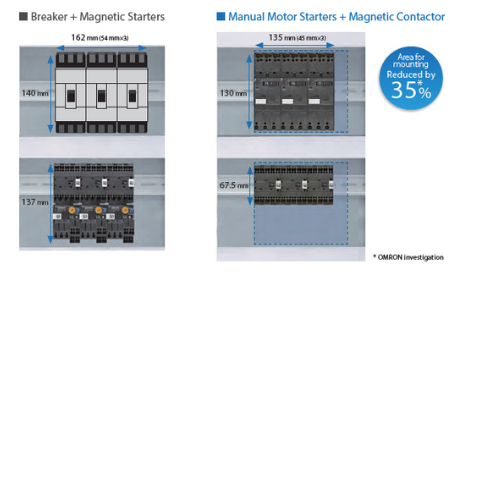

space-saving design: compact size reduces the overall dimensions of control panels.

Specifications

Ratings/Specifications

J7MC-3P-[] (standard type)

Rated current *2 In [A]	Current setting range Rated operating current [A]	Instantaneo us trip current [A]	3-phase standard motor capacity and full load current *1				Model	Rated breaking current Icu [kA]
			200-240 VAC		380-440 VAC			Rated breaking current Icu [kA]
			Capacity [kW]	Current [A]	Capacity [kW]	Current [A]		240 VAC	415 VAC	440 VAC
0.16	0.1 to 0.16	2.1	---	---	0.02	0.1	J7MC-3P-E16	100	100	100
0.25	0.16 to 0.25	3.3	0.03	0.24	0.06	0.21	J7MC-3P-E25
0.4	0.25 to 0.4	5.2	0.06	0.37	0.1	0.34	J7MC-3P-E4
0.63	0.4 to 0.63	8.2	---	---	0.12	0.41	J7MC-3P-E63
1	0.63 to 1	13	0.1	0.68	0.2	0.65	J7MC-3P-1
1.6	1 to 1.6	20.8	0.2	1.3	0.4	1.15	J7MC-3P-1E6
2.5	1.6 to 2.5	32.5	0.4	2.3	0.75	1.8	J7MC-3P-2E5
4	2.5 to 4	52	0.75	3.5	1.5	3.5	J7MC-3P-4
6.3	4 to 6.3	81.9	---	---	2.2	4.8	J7MC-3P-6			50
10	6.3 to 10	130	1.5	6.9	3.7	7.8	J7MC-3P-10			15
10	6.3 to 10	130	2.2	9.5	3.7	7.8	J7MC-3P-10			15
13	9 to 13	169	2.2	9.5	5.5	10.5	J7MC-3P-13		50	10
16	11 to 16	208	3.7	15.5	7.5	13.5	J7MC-3P-16		25
20	14 to 20	260	3.7	15.5	11	20	J7MC-3P-20	50	25

J7MC-3R-[] (high-performance type)

Rated current *2 In [A]	Current setting range Rated operating current [A]	Instantaneo us trip current [A]	3-phase standard motor capacity and full load current *1				Model	Rated breaking current Icu [kA]
			200-240 VAC		380-440 VAC			Rated breaking current Icu [kA]
			Capacity [kW]	Current [A]	Capacity [kW]	Current [A]		240 VAC	415 VAC	440 VAC
0.16	0.1 to 0.16	2.1	---	---	0.02	0.1	J7MC-3R-E16	100	100	100
0.25	0.16 to 0.25	3.3	0.03	0.24	0.06	0.21	J7MC-3R-E25
0.4	0.25 to 0.4	5.2	0.06	0.37	0.1	0.34	J7MC-3R-E4
0.63	0.4 to 0.63	8.2	---	---	0.12	0.41	J7MC-3R-E63
1	0.63 to 1	13	0.1	0.68	0.2	0.65	J7MC-3R-1
1.6	1 to 1.6	20.8	0.2	1.3	0.4	1.15	J7MC-3R-1E6
2.5	1.6 to 2.5	32.5	0.4	2.3	0.75	1.8	J7MC-3R-2E5
4	2.5 to 4	52	0.75	3.5	1.5	3.5	J7MC-3R-4
6.3	4 to 6.3	81.9	---	---	2.2	4.8	J7MC-3R-6
10	6.3 to 10	130	1.5	6.9	3.7	7.8	J7MC-3R-10			50
10	6.3 to 10	130	2.2	9.5	3.7	7.8	J7MC-3R-10
13	9 to 13	169	2.2	9.5	5.5	10.5	J7MC-3R-13
16	11 to 16	208	3.7	15.5	7.5	13.5	J7MC-3R-16		50	35 *3
20	14 to 20	260	3.7	15.5	11	20	J7MC-3R-20		50	35 *3

*1. Full load currents are values for 200 VAC / 50 Hz, 400 VAC / 50 Hz, 4P reference motors.
　　Before applying them, check the full load current of the motor used.
*2. Maximum thermal current setting value
*3. JEM1195 breaking duty "O", single time breaking capacity is 50 kA.

Ratings/Characteristics

Model		J7MC-3P-[] (standard type)
Item		J7MC-3P-[] (standard type)
Switch type		Rocker switch
Number of poles		3
Rated current In		0.16 to 20 A
Rated operational voltage Ue		200 to 690 V
Rated frequency		50/60 Hz
Rated insulation voltage		690VAC
Rated impulse dielectric strength		6 kV
Use category	IEC 60947-2 (circuit breaker), JIS C 8201-2	Cat.A
Use category	IEC 60947-4-1 (motor starter), JIS C 8201-4-1	AC-3
Trip class (IEC 60947-4-1/JIS C 8201-4-1)		10 Trips within 4 minutes at 150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on cold start
Instantaneous trip characteristics		13 x Ie max.
Power loss (3-phase reference value)		Rated current 0.16 to 2.5 A: 6 W Rated current 4 to 6.3 A: 6.5 W Rated current 10 to 20 A: 7 W
Endurance	Mechanical	100,000 cycles In=0.16 to 20 A
Endurance	Electrical	100,000 cycles In=0.16 to 20 A
Number of terminal insertions and removals [cycles]		20
Maximum operate frequency (motor starts) [cycles/hour]		25
Phase failure protection		Yes
Trip indicator		Yes
Test trip function		Yes
Rated limit breaking capacity Icu: Rated limit breaking capacity [kA] (Breaking duty O-CO) Ics: Rated operating breaking capacity [kA] (Breaking duty O-CO-CO) Ics=100%Icu (Icu=100 kA	Rated operational current Ie Current setting [A]	IEC 60947-2/JIS C 8201-2										UL
		240 V 200 V		415 V 400 V		460 V 440 V		500 V		690 V 600 V		480 V
		Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics
	0.1-0.16	100		100		100		100		100		50
	0.16-0.25	100		100		100		100		100		50
	0.25-0.4	100		100		100		100		100		50
	0.4-0.63	100		100		100		100		100		50
	0.63-1	100		100		100		100		100		50
	1-1.6	100		100		100		100		100		50
	1.6-2.5	100		100		100		100		3	2	50
	2.5-4	100		100		100		100		3	2	50
	4-6.3	100		100		50	38	50	38	3	2	22
	6.3-10	100		100		15	11	10	8	3	2	22
	9-13	100		50	38	10	8	6	5	3	2	22
	11-16	100		25	19	10	8	6	5	3	2	22
	14-20	50	38	25	19	10	8	6	5	3	2	22
Vibration resistance		Vibration: 10 to 55 Hz, acceleration: 15 m/s²
Shock resistance		Shock value 50 m/s²
Degree of protection		IP20 (IEC60529)
Operating temperature		-20°C to +60°C
Ambient storage temperature		-40°C to +80°C (no condensation or icing)
Relative humidity		95% RH max. (no condensation or icing)
Altitude		2000m max.
Weight		Approx. 430 g
Applicable Standards	Safety Standard	EN 60947-2 (IEC 60947-2, IEC 60947-4-1), UL60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.2, GB/T 14048.4, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials), UKCA

Model		J7MC-3R-[] (high-performance type)
Item		J7MC-3R-[] (high-performance type)
Switch type		Rotary switch
Number of poles		3
Rated current In		0.16 to 20 A
Rated operational voltage Ue		200 to 690 V
Rated frequency		50/60 Hz
Rated insulation voltage		690VAC
Rated impulse dielectric strength		6 kV
Use category	IEC 60947-2 (circuit breaker), JIS C 8201-2	Cat.A
Use category	IEC 60947-4-1 (motor starter), JIS C 8201-4-1	AC-3
Trip class (IEC 60947-4-1/JIS C 8201-4-1)		10 Trips within 4 minutes at 150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on cold start
Instantaneous trip characteristics		13 x Ie max.
Power loss (3-phase reference value)		Rated current 0.16 to 1.6 A: 6 W Rated current 2.5 to 4 A: 6.5 W Rated current 6.3 to 20 A: 7 W
Endurance	Mechanical	100,000 cycles In=0.16 to 20 A
Endurance	Electrical	100,000 cycles In=0.16 to 20 A
Number of terminal insertions and removals [cycles]		20
Maximum operate frequency (motor starts) [cycles/hour]		25
Phase failure protection		Yes
Trip indicator		Yes
Test trip function		Yes
Rated limit breaking capacity Icu: Rated limit breaking capacity [kA] (Breaking duty O-CO) Ics: Rated operating breaking capacity [kA] (Breaking duty O-CO-CO) Ics=100%Icu (Icu=100 kA	Rated operational current Ie Current setting [A]	IEC 60947-2/JIS C 8201-2										UL
		240 V 200 V		415 V 400 V		460 V 440 V		500 V		690 V 600 V		480 V
		Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics
	0.1-0.16	100		100		100		100		100		50
	0.16-0.25	100		100		100		100		100		50
	0.25-0.4	100		100		100		100		100		50
	0.4-0.63	100		100		100		100		100		50
	0.63-1	100		100		100		100		100		50
	1-1.6	100		100		100		100		100		50
	1.6-2.5	100		100		100		100		8	6	50
	2.5-4	100		100		100		100		8	6	50
	4-6.3	100		100		100		100		6	5	50
	6.3-10	100		100		50	38	50	38	6	5	50
	9-13	100		100		50	38	42	32	6	5	50
	11-16	100		50	38	35 *	27	10	8	4	3	50
	14-20	100		50	38	35 *	27	10	8	4	3	50
Vibration resistance		Vibration: 10 to 55 Hz, acceleration: 15 m/s²
Shock resistance		Shock value 50 m/s²
Degree of protection		IP20 (IEC60529)
Operating temperature		-20°C to +60°C
Ambient storage temperature		-40°C to +80°C (no condensation or icing)
Relative humidity		95% RH max. (no condensation or icing)
Altitude		2000m max.
Weight		460 g
Applicable Standards	Safety Standard	EN 60947-2 (IEC 60947-2, IEC 60947-4-1), UL60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.2, GB/T 14048.4, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials), UKCA

* JEM1195 breaking duty "O", single time breaking capacity is 50 kA

Accessories (Order Separately)

Model					J73MC-W-[]	J73MC-K-[]
Compliant standards					IEC 60947-5-1, UL 508
Auxiliary contact					SPST-1NO (1a), SPST-1NC (1b)
Rated carry current [A]		IEC 60947-5-1			6
Rated carry current [A]		UL 508			5
Rated operating current [A]	IEC 60947-5-1	AC-15		48 V	5
				125 V	3
				230 V	1.5
		DC-13		48 V	1.38
				110 V	0.55
				220 V	0.27
	UL 508	AC	B300	120 V	3
		AC	B300	240 V	1.5
		DC	Q300	125 V	0.55
		DC	Q300	250 V	0.27
Mechanical life expectancy [cycles]					100,000	1,000
Minimum operating voltage/current					17 VDC, 5 mA
Contact form					Double-break
Contact material					Ag alloy
