- Digital Indicator ID-S Mitutoyo 543-792 12.7mm
Digital Indicator ID-S Mitutoyo 543-792 12.7mm
-
Product No3990
-
Brand
-
OriginJapan
-
Guarantee12 MONTHS

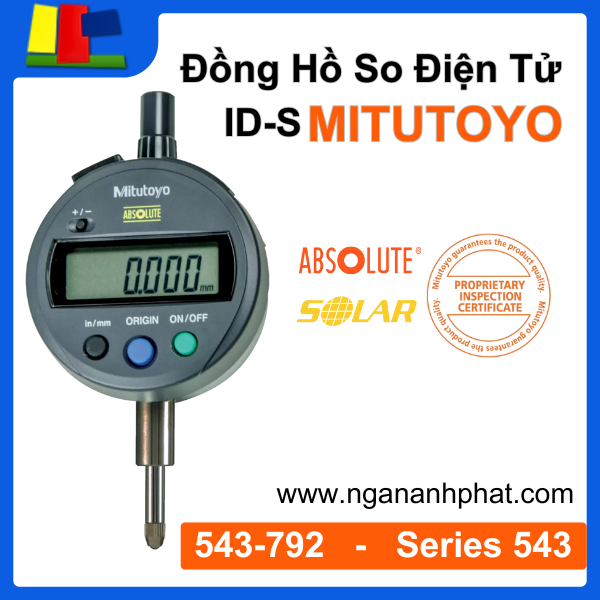

Digital Indicator ID-S 543-792 0.5"/12.7mm
Ngan Anh Phat Co., Ltd. specializes in supplying the Digital Indicator ID-S No. 543-792 Series 543 from Mitutoyo, originating from Japan, in the Vietnamese market.
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- You can access all functions by using the large, user-friendly
buttons on the front of the indicator. - Large character height of 9 mm provides good readability.
- Exceptional battery life.
FEATURES
| Digital/Analog: |
Digital |
| Inch-Metric: |
Inch/Metric |
| Range: |
0.5"/12.7 mm |
| Digital step: |
0.00005"/0.001 mm |
| Max. Permissible Error E MPE (Total Range): |
±0.0001"/0.003 mm |
| H MPE (Hysteresis): |
0.0001"/0.002 mm |
| R MPE (Repeatability): |
0.0001"/0.002 mm |
| Measuring force MPL: |
≤1.5 N |
| Protection: |
IP42 |
| Type: |
ASME/ANSI/AGD Standard |
| Mass: |
150 g |
| Display: |
LCD, character height 9 mm |
| Max. response speed: |
Unlimited |
| Alarm: |
Low voltage, sensor error, ABS data composition error |
| Stem ∅: |
9.52 mm |
| Contact point: |
Carbide ball, thread: No.4-48UNF |
| Power supply: |
1 battery SR44 |
| Battery life: |
Approx. 18000 hours (0.001 mm type), |
| Remarks: |
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required. |
| Digimatic data output: |
Yes |
| ON/OFF: |
Yes |
| ORIGIN (ABS-Zero): |
Yes |
| Counting direction switchable: |
Yes |
| Inch/Metric switchable: |
Yes |
| Digital Scale: |
Electrostatic capacitance type absolute linear encoder |
DIMENSIONS
