What Is a Variable Frequency Drive? Structure and Role of VFDs in Industrial Production

A Variable Frequency Drive (VFD) is an electronic device that plays a particularly important role in industrial production. So, what is a VFD? What is its structure and operating principle? And what role does it play in industrial manufacturing? All of these questions will be answered by Ngan Anh Phat in the following article.

I. What Is a Variable Frequency Drive?

A Variable Frequency Drive (also known as an Inverter or VFD) is an electronic device used to convert fixed-frequency alternating current (AC), typically 50Hz or 60Hz, into alternating current with adjustable frequency and voltage.

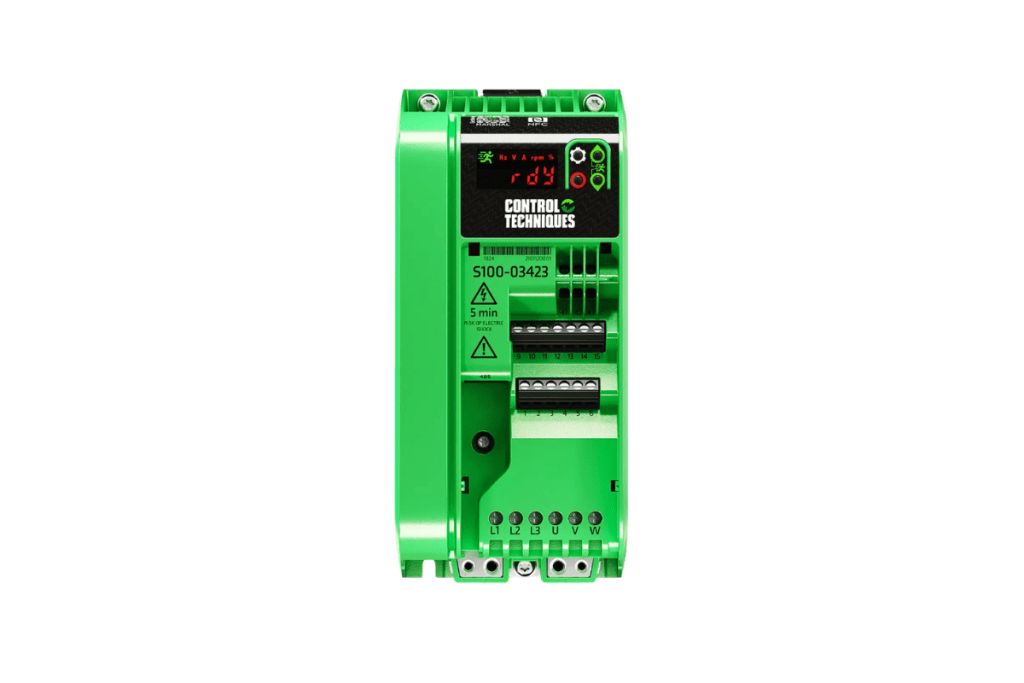

A VFD helps adjust frequency and voltage

II. Internal Structure of a Variable Frequency Drive

Based on its operating principle, a device is considered a Variable Frequency Drive when it consists of the following four basic components:

• Rectifier circuit: Converts alternating current (AC) into direct current (DC).
• DC Bus (filter circuit): Stabilizes and smooths the direct current, eliminating noise and ripple.
• Inverter circuit: Converts direct current back into alternating current with adjustable frequency and voltage.
• Controller: Controls the entire conversion process and adjusts output voltage and frequency parameters according to system requirements.

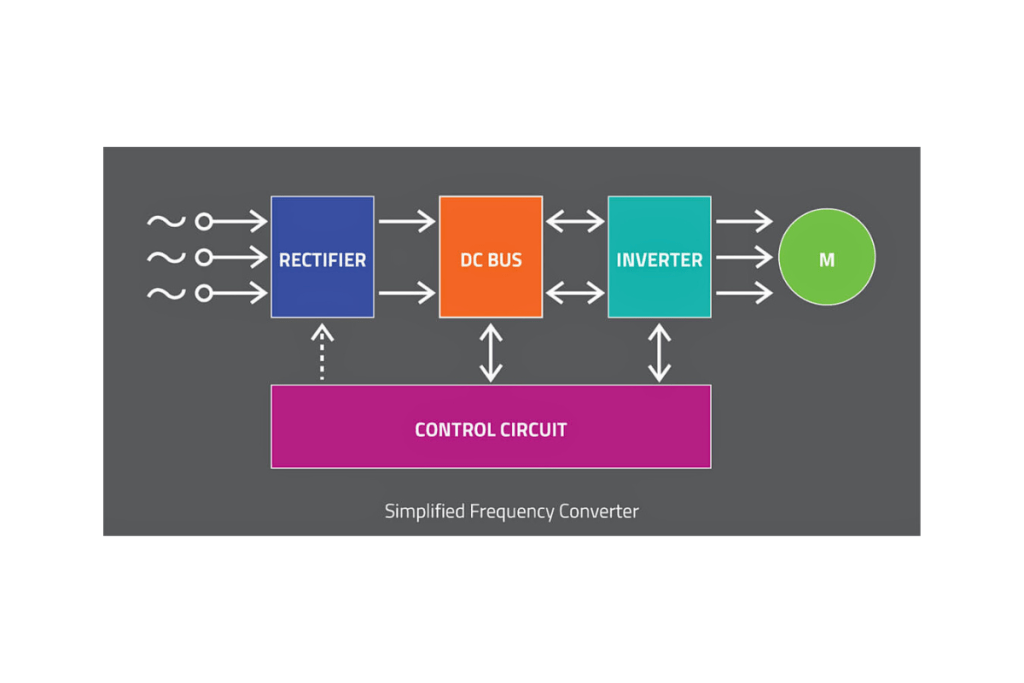

Diagram of the four basic components of a variable frequency drive

III. Operating Principle of a Variable Frequency Drive

The basic operating principle of a VFD can be divided into two main stages:

• Stage 1: The input alternating current (AC) passes through the rectifier circuit and is converted into direct current (DC) with constant voltage and frequency.
• Stage 2: The direct current (DC) is then filtered and stabilized before being converted back into alternating current with adjusted frequency and voltage through the inverter circuit.

Throughout the entire operation, the controller inside the VFD continuously monitors and adjusts parameters to ensure that the motor operates at the required speed and torque.

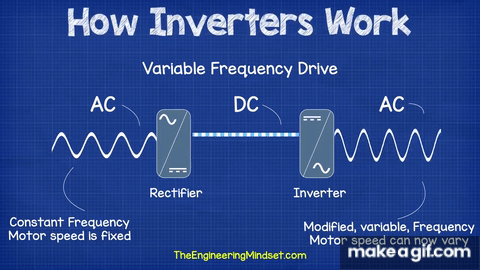

 Operating process of a variable frequency drive

IV. Role and Significance of Variable Frequency Drives in Industrial Production

Today, Variable Frequency Drives are widely used in industrial production for the following purposes:

1. Motor speed and torque control

VFDs allow flexible adjustment of operating speed for conveyor systems, compressors, fans, pumps, and other industrial equipment to suit actual production conditions. This helps optimize production processes, reduce costs, and improve efficiency as well as product quality.

2. Energy saving

VFDs reduce power consumption by adjusting motor speed and output power according to the actual load. According to statistics from enterprises, electric motor systems account for more than 65% of total electricity consumption in industrial production. Optimizing motor systems using VFDs can reduce energy consumption by up to 70%, while simultaneously improving product quality and lowering production costs.

3. Extended equipment lifespan and reduced maintenance

VFDs provide better protection for motors against issues such as overload, undervoltage, overvoltage, and sudden mechanical shock during startup. As a result, motors can operate smoothly and efficiently over long periods, reducing downtime caused by maintenance and wear of related equipment.

V. Applications of Variable Frequency Drives

Variable Frequency Drives are among the most important control devices in industrial automation and are widely used in almost all fields that require speed control and energy savings.

1. Applications in pumps and fans (quadratic torque loads)

This is the application field where VFDs deliver the highest energy-saving efficiency.

• Water pumps and water supply systems:
  VFDs are used to control pump speed to maintain constant pressure or flow in water supply systems, irrigation systems, or fire-fighting pump systems, instead of using throttle valves.
• Ventilation and air conditioning systems:
  VFDs control the speed of exhaust and supply fans to maintain stable air temperature and pressure in buildings, factories, and mines.

2. Applications in transportation and lifting systems

VFDs help ensure smoother, safer, and more precise operation.

• Conveyors and conveyor belts:
  VFDs flexibly adjust conveyor speed to synchronize production processes, preventing product congestion or stretching.
• Elevators, escalators, and cranes:
  VFDs enable soft starting and stopping, eliminate jerking motion, ensure user safety and comfort, and reduce mechanical wear.

3. Applications in machine tools and manufacturing

VFDs are widely used to control precision mechanisms that require flexible speed variation.

• CNC machines, milling machines, and lathes:
  Control spindle speed to match different materials and machining requirements.
• Rolling mills and drawing machines:
  Control synchronized speeds of multiple motors in steel rolling, film rolling, and fiber drawing systems, ensuring consistent material quality and uniform thickness.

4. Other applications

• Air compressors:
  Control compressor operation to maintain stable air pressure without frequent on/off switching.
• Textile and printing machines:
  Require precise and highly synchronized speed control among shafts to ensure fabric quality and printing accuracy.
• Dosing pumps:
  Control pump speed to accurately deliver chemicals or raw materials in food processing, chemical, and other industries.
