What is a Round Linear Shaft? Roles, Classification, and Industrial Applications.

I. What Is a Round Linear Shaft?

A round linear shaft is a mechanical component with a straight cylindrical shape, used to guide linear motion (straight-line movement). It works in combination with linear ball bushings, flanged and non-flanged slide bushings, allowing a machine component to move along a fixed axis with low friction and high precision.

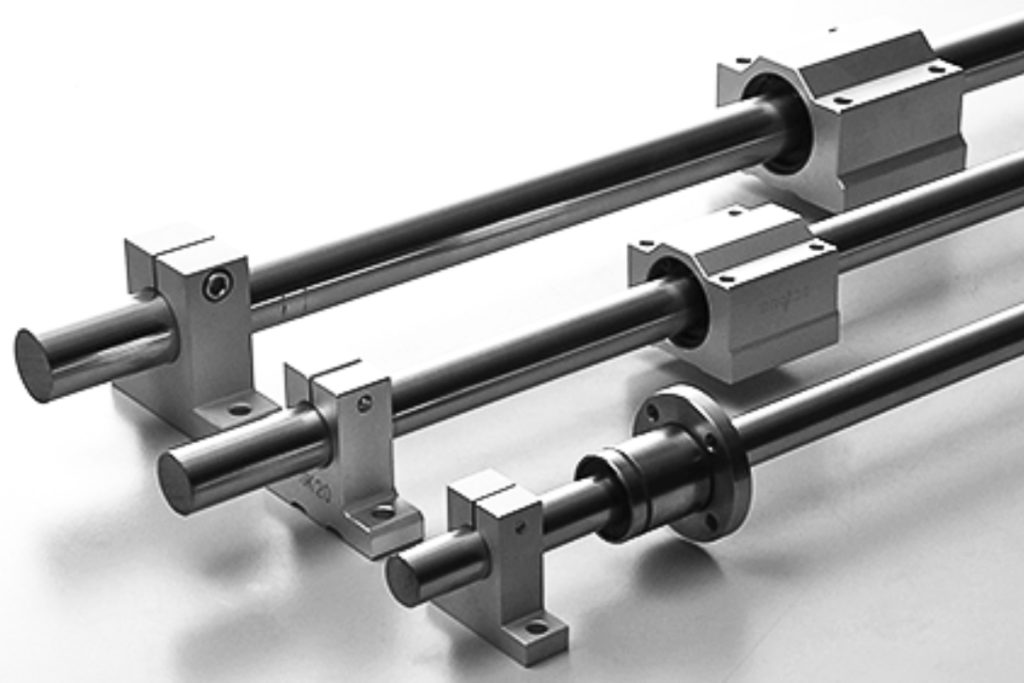

Round linear shaft used for linear guidance

Essentially, it acts as a perfect “rail” for moving components. Thanks to its precisely machined surface and high hardness, the round linear shaft ensures stable motion trajectories, minimizes vibration and positional deviation. This is a cost-effective, durable, and easy-to-maintain linear guiding solution, widely applied from small devices to heavy industrial machinery.

II. Classification of Round Linear Shafts

1. Classification by External Structure

There are many types of round linear shaft designs on the market today to meet different requirements for load capacity, rigidity, and working environments. Below are the most common types:

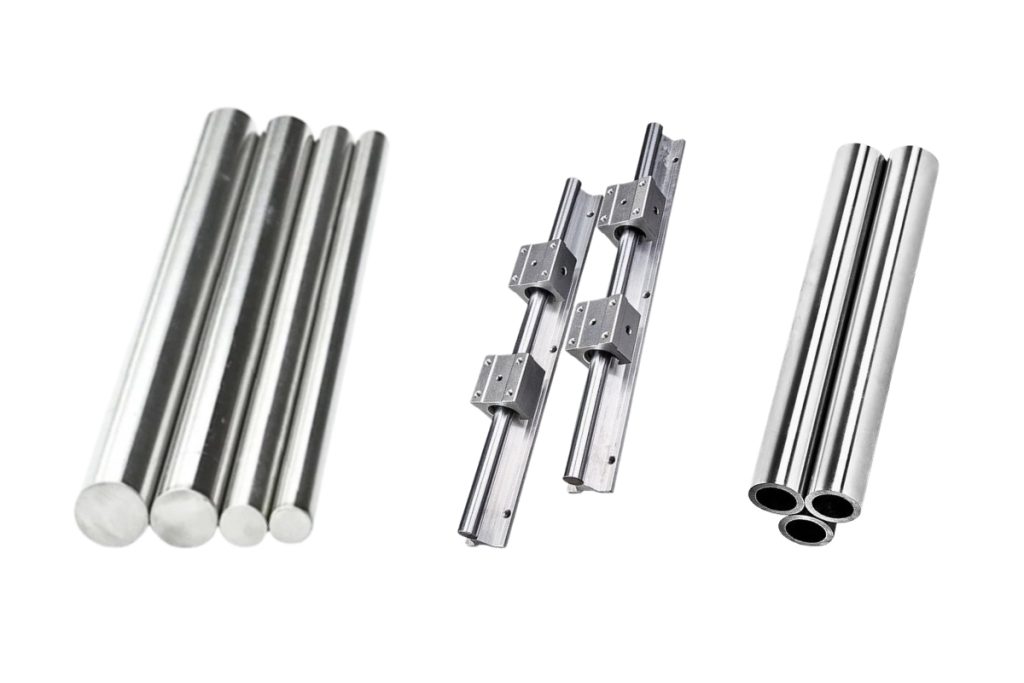

Common types of round linear shafts

2. Classification by Material

In practice, round linear shafts are manufactured from various materials. However, in Vietnam, the following two material groups are the most commonly used:

a) SUJ2 Steel Round Linear Shaft

Material:
Made from SUJ2 steel, a high-carbon chromium steel according to JIS G4805 (Japan), with typical chemical composition:

• Carbon (C): 0.95 – 1.10%
• Chromium (Cr): 1.30 – 1.60%
• Silicon (Si): 0.15 – 0.35%
• Manganese (Mn): ≤ 0.50%
• Phosphorus (P) and Sulfur (S): ≤ 0.025%

Advantages:

• High hardness:
  SUJ2 steel achieves a hardness of 58–62 HRC due to its high carbon content (0.95–1.10%) and chromium content (1.3–1.6%), which enhances hardenability. Mn and Si improve strength and structural stability.
  The standard heat treatment process includes quenching at 830–860°C, low-temperature tempering at 150–200°C, and optional deep cryogenic treatment to reduce retained austenite.
  As a result, SUJ2 offers excellent wear resistance and maintains long-term dimensional accuracy during operation.
• Excellent wear resistance, high straightness, and dimensional stability
• High load capacity with minimal deformation

Applications:

• CNC machines and automation equipment
• Bearings and heavy-load mechanical components
• Industrial linear guiding systems

b) Stainless Steel Round Linear Shaft (Inox)

Material:
Stainless steel SUS304 or SUS440C

Advantages:

• Excellent corrosion resistance
• Rust-free and easy to clean
• Suitable for humid or mildly chemical environments

Applications:

• Food and pharmaceutical equipment
• Outdoor machinery or humid environments
• Medical equipment and cleanroom systems

III. Core Role in Linear Motion Systems

In any mechanical system requiring linear motion, the round linear shaft plays a central role:

• Precise guidance: Provides an absolutely straight trajectory for machine components
• Load bearing: Supports and distributes forces acting on moving parts
• Friction reduction: When combined with linear ball bushings, the system delivers smooth, stable motion, reducing energy consumption and wear

IV. Practical Industrial Applications of Round Linear Shafts

Thanks to their precision, reasonable cost, and smooth operation, round linear shafts are widely used in many industries:

• Small CNC machines and laser engraving machines: Guiding X, Y, Z axes to ensure machining accuracy
• 3D printers: Ensuring precise movement of the print head layer by layer
• Automation systems: Robotic arms, assembly lines, automatic feeding systems
• Medical equipment: Diagnostic and imaging machines requiring precise linear motion
• Woodworking industry: Sliding table saws, drilling machines, milling machines
• Measuring equipment: Coordinate Measuring Machines (CMM), optical measuring systems

V. High-Quality Round Linear Shaft Supplier – Ngan Anh Phat

Ngan Anh Phat supplies high-quality SUJ round linear shafts, meeting most application requirements. Products are strictly controlled for hardness, precision, and surface quality, ensuring stable and durable operation.

Key Technical Specifications of SUJ Round Linear Shafts

1. SUJ Round Linear Shaft Diameters

Below is a classification of available SUJ round linear shaft sizes at our company, along with typical applications:

In addition to standard sizes, custom diameter round linear shafts are also available upon request.

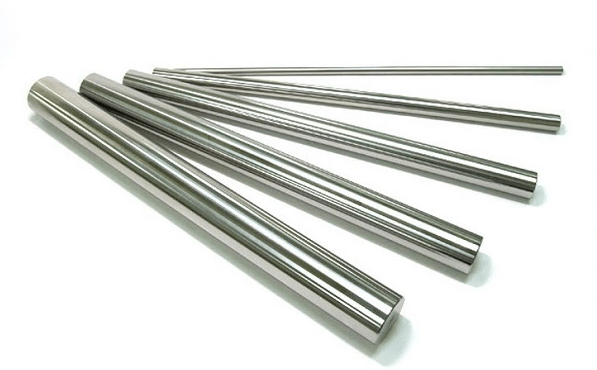

Round linear shafts with various diameters for diverse mechanical needs

With a wide range of diameters, these products easily meet requirements from small models to large-scale industrial equipment.

2. Precision – Tolerance

Precision is the most critical technical parameter of a round linear shaft. Higher precision ensures perfect compatibility with linear ball bushings, reduces vibration, and increases the lifespan of linear motion systems.

Ngan Anh Phat supplies SUJ round linear shafts with diameter tolerance of ±0.01 mm, suitable for applications requiring high accuracy and stability.

3. Hardness

A strict manufacturing process allows SUJ round linear shafts to achieve a hardness of 58–62 HRC, providing:

• High load-bearing capacity with minimal deformation under heavy pressure
• Excellent wear resistance, maintaining accuracy over long-term operation
• A balanced combination of surface hardness and core toughness, ensuring durability and impact resistance

Ngan Anh Phat offers custom round linear shafts, with optional diameters, cut-to-length services, and precision machining according to drawings. A wide range of products is always in stock to fully meet customer requirements.

Contact Ngan Anh Phat now for in-depth technical consultation and the best quotation for your project!
