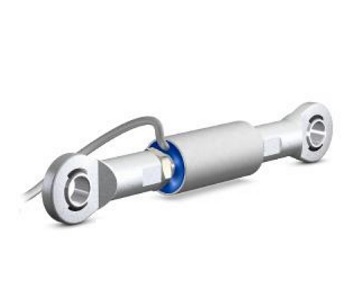

ZU Series High Capacity Tension Load Cell
Approved for IP67. High capacity tension load cell with 2 rod ends which make fixing easy. The capacity is from 10kN(1000kgf) to 20kN(2000kgf).
Feature ZU Series High Capacity Tension Load Cell IMADA:
-High capacity load cell for tension.
-2 attached rod ends help mounting.
-IP 67 is approved. Waterproof and dust-proof.
-Connecting an amplifier is required to output force value.
Model ZU Series:
| Model | eZ-Connect series Model | Capacity |
|---|---|---|
| ZU-10kN | eZU-10kN | 10kN |
| ZU-20kN | eZU-20kN | 20kN |
Specifications for High Capacity Tension Load Cell ZU series:
| Model | ZU series |
|---|---|
| Rated output | +/-1.5mV/V |
| Nonlinearity | +/-0.5% R.O |
| Allowable voltage | 10V DC |
| Safe overload rating | 120% |
| Working environment(allowable temperature) | -10~50 degree Celsius(-30~50 degree Celsius) |
| Temperature influence at 0 point | 0.005%/ degree Celsius |
| Temperature influence for output | 0.005%/ degree Celsius |
| Cable | ZU-10kN/20kN: Approx.5m |
| International Protection | IP67 |
