Servo Cylinder TOYO DGTY Series

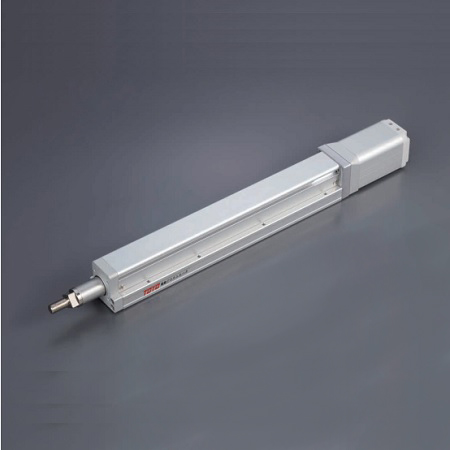

Servo Cylinder TOYO – DGTY4 & DGTY5 Series

Built-in Linear Motion Guide Servo Cylinder-Rod Type

NGAN ANH PHAT CO.,LTD chuyên Phân phối & Cung cấp dòng sản phẩm Servo Cylinder TOYO DGTY Series xuất xứ Taiwan tại thị trường Việt Nam.

Feautures

DGTY4

• Repeatability：±0.01(mm)
• Ball Screw Lead：2/6/12(mm)
• Maximum Speed(Horizontal)：≦100/≦300/≦600(mm/s)
• Maximum Speed(Vertical)：≦100/≦300/≦600(mm/s)
• Horizontal Maximum Payload：≦25/≦20/≦12(Kg)
• Vertical Maximum Payload：≦8/≦5/≦2(Kg)
• Rated Thrust：827/276/138(N)
• Stroke / Pitch：50-800 / 50(mm)

DGTY5

• Repeatability：±0.01(mm)
• Ball Screw Lead：2/5/10/20(mm)
• Maximum Speed(Horizontal)：≦100/≦250/≦500/≦1000(mm/s)
• Maximum Speed(Vertical)：≦100/≦250/≦500/≦1000(mm/s)
• Horizontal Maximum Payload：≦30/≦30/≦15/≦10(Kg)
• Vertical Maximum Payload：≦10/≦8.1/≦2.7/≦1.4(Kg)
• Rated Thrust：1147/459/229/115(N)
• Stroke / Pitch：50-600 / 50(mm)

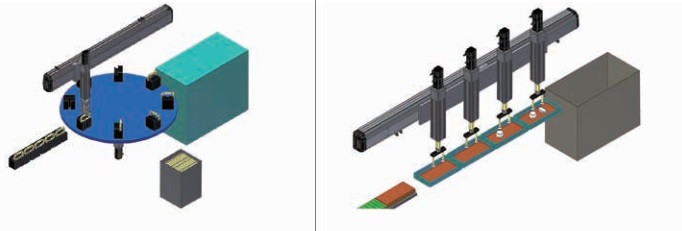

Application Samples with DGTY :
