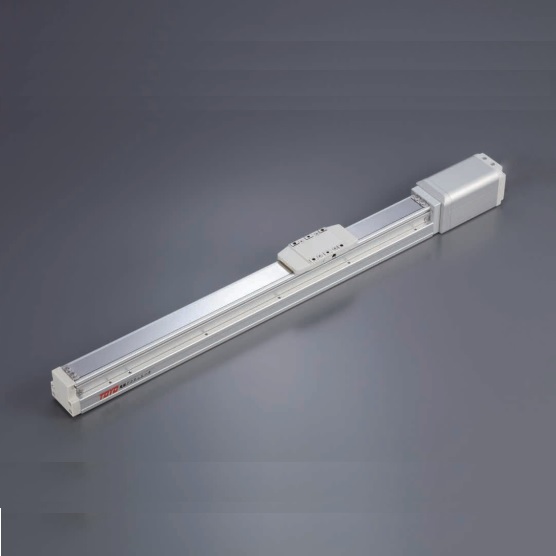

Servo Cylinder TOYO DGTH Series

Servo Cylinder TOYO DGTH4 & DGTH5

Built-in LM Guide Servo Cylinder-Slider Type

NGAN ANH PHAT CO.,LTD chuyên Phân phối và Cung cấp dòng sản phẩm Servo Cylinder TOYO DGTH Series chính hãng xuất xứ Taiwan tại thị trường Việt Nam.

Features :

DGTH4

• Repeatability：±0.01(mm)
• Ball Screw Lead：2/6/12(mm)
• Maximum Speed(Horizontal)：≦100/≦300/≦600(mm/s)
• Maximum Speed(Vertical)：≦100/≦300/≦600(mm/s)
• Horizontal Maximum Payload：≦25/≦20/≦12(Kg)
• Vertical Maximum Payload：≦8/≦5/≦2(Kg)
• Rated Thrust：827/276/138(N)
• Stroke / Pitch：50-800 / 50(mm)

DGTH5

• Repeatability：±0.01(mm)
• Ball Screw Lead：2/5/10/20(mm)
• Maximum Speed(Horizontal)：≦100/≦250/≦500/≦1000(mm/s)
• Maximum Speed(Vertical)：≦100/≦250/≦500/≦1000(mm/s)
• Horizontal Maximum Payload：≦30/≦30/≦15/≦10(Kg)
• Vertical Maximum Payload：≦10/≦8.1/≦2.7/≦1.4(Kg)
• Rated Thrust：1147/459/229/115(N)
• Stroke / Pitch：50-800 / 50(mm)

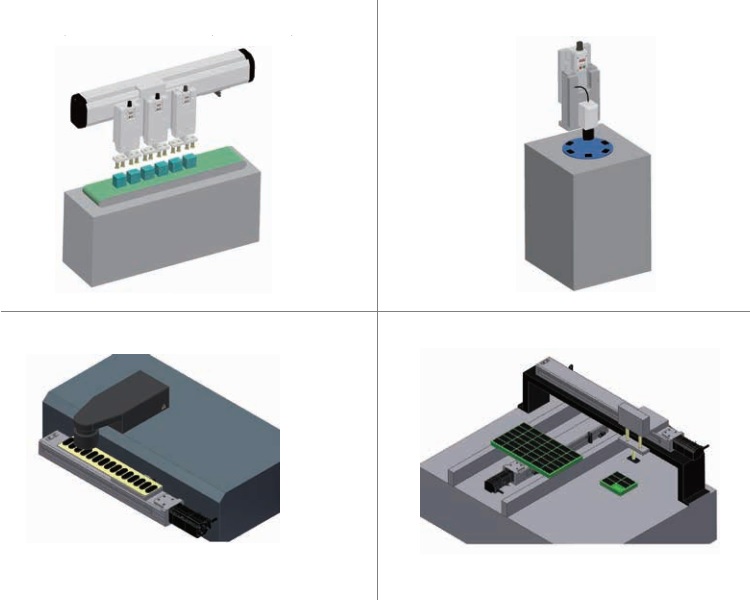

Application Samples :
