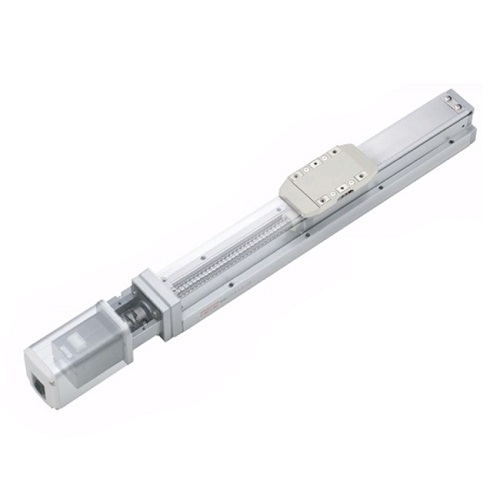

SERVO CYLINDER TOYO CGTH4 – CGTH5 Series

Built-in Linear Motion Guide Servo Cylinder-slider Type

NGAN ANH PHAT CO.,LTD chúng tôi chuyên Phân phối & Cung cấp các dòng sản phẩm Servo Cylinder CGTH Series chính hãng từ nhà sản xuất TOYO xuất xứ Taiwan tại thị trường Việt Nam.

Features :

CGTH4 :

• Repeatability：±0.01(mm)
• Horizontal Maximum Payload：≦25(Kg)
• Vertical Maximum Payload：≦8(Kg)
• Ball Screw Lead：2/6/12(mm)
• Maximum Speed(Horizontal)：≦110/≦331/≦661(mm/s)
• Maximum Speed(Vertical)：≦108/≦314/≦646(mm/s)
• Horizontal Maximum Payload：≦25/≦20/≦12(Kg)
• Vertical Maximum Payload：≦8/≦8/≦3.5(Kg)
• Rated Thrust：1094/365/182(N)
• Stroke / Pitch：50-800 / 50(mm)

CGTH5

• Repeatability：±0.01(mm)
• Horizontal Maximum Payload：≦30(Kg)
• Vertical Maximum Payload：≦10(Kg)
• Ball Screw Lead：2/5/10/20(mm)
• Maximum Speed(Horizontal): ≦109/≦273/≦538/≦1102(mm/s)
• Maximum Speed(Vertical)：≦108/≦269/≦538/≦1093(mm/s)
• Horizontal Maximum Payload：≦30/≦30/≦15/≦10(Kg)
• Vertical Maximum Payload：≦10/≦10/≦5/≦2.5(Kg)
• Rated Thrust：1147/459/229/115(N)
• Stroke / Pitch：50-800 / 50(mm)
