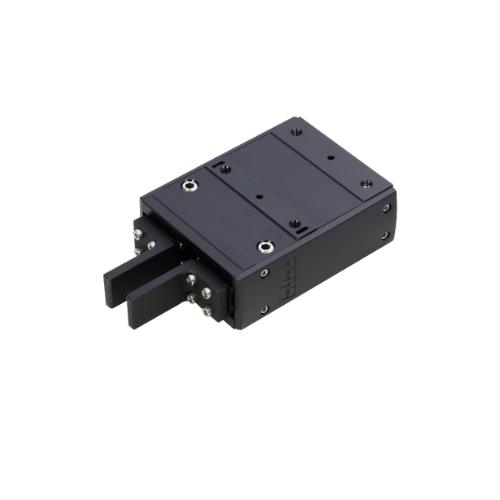

Robot Gripper CHZ2-S14 TOYO

Our company, Ngan Anh Phat Co., Ltd., specializes in distributing and supplying the Robot Gripper CHZ2-S14 TOYO to the Vietnamese market.

Key features of the Robot Gripper CHZ2-S14 TOYO

• Shock Resistance/Vibration Resistance: 50/20
• Clamping Weight: 0.98 (kg)
• Clamping Force Range: 92.5 (N)
• Opening/Closing Stroke: 14 (mm)
• Opening/Closing Speed: 35.5 (mm/s)
• Repeat Positioning Accuracy: ±0.02 (mm)
• Guide Mechanism: Linear Slide Rail
• Operating Temperature Range: 5~45˚C (avoid freezing)
• Operating Humidity Range: RH35~85 (non-condensing)

※ Total stroke for both sides
※ Clamping weight is affected by material, shape, and clamping method of the accessory/workpiece, so this value is for reference only.
※ Optional accessories not included.
※ 92.5 = 100% current.
