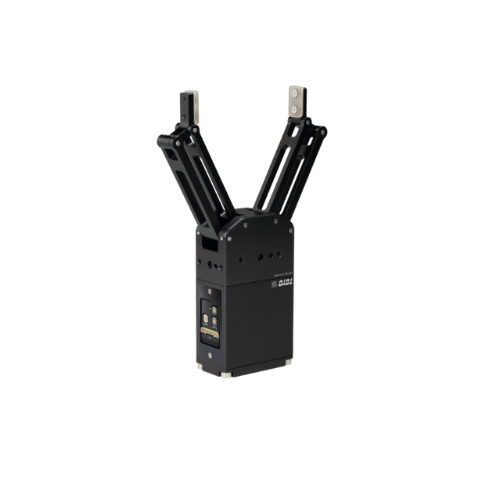

Robot Gripper CHY2B-S150 TOYO

Our company, Ngan Anh Phat Co., Ltd., specializes in distributing and supplying the Robot Gripper CHY2B-S150 TOYO to the Vietnamese market.

Key features of the Robot Gripper CHY2B-S150 TOYO

• Clamping weight: 1 (kg)
• Clamping force range: 15–30 (30–100%) (N)
• Opening/closing stroke: 150 (mm)
• Opening/closing speed: 40–200 (mm/s)
• Position repeatability accuracy: ±0.05 (mm)
• Guide mechanism: linear slide rail
• Operating temperature range: 0 to +40 (°C)
• Operating humidity range: up to RH 90% (non-condensing)
