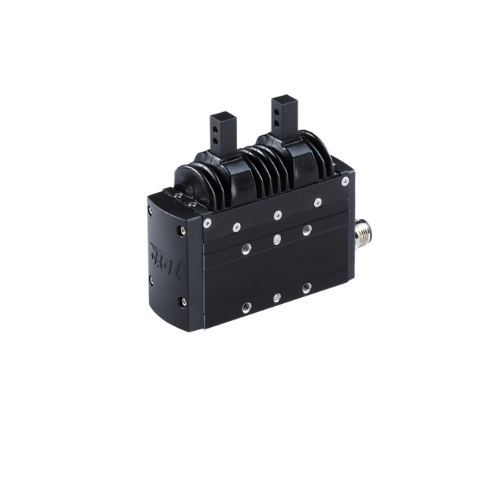

Robot Gripper CHS2C-S20 TOYO

Our company, Ngan Anh Phat Co., Ltd., specializes in distributing and supplying the Robot Gripper CHS2C-S20 TOYO to the Vietnamese market.

Key features of the Robot Gripper CHS2C-S20 TOYO

• Clamping Weight: 1.24 (kg)
• Clamping Force Range: 20-124 (15-100%) (N)
• Opening/Closing Stroke: 20 (mm)
• Opening/Closing Speed: 6.66~33.3 (mm/s)
• Repeat Positioning Accuracy: ±0.01 (mm)
• Guide Mechanism: Linear Slide Rail
• Operating Temperature Range: 0~+40 (˚C)
• Operating Humidity Range: RH90 or below (non-condensing) (%)
