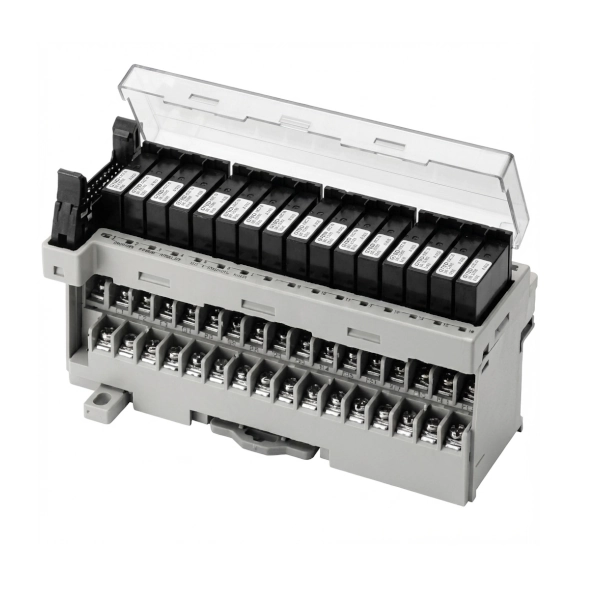

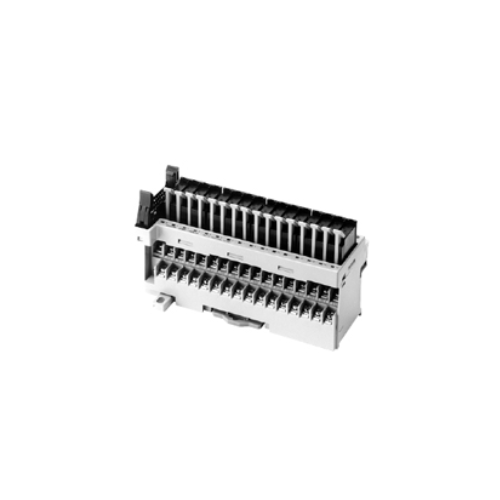

Relay Terminal G70D-VSOC16

Ngan Anh Phat Co., Ltd specializes in providing genuine  products Relay Terminal G70D-VSOC16 from the manufacturer Omron, originating from Japan, to the Vietnamese market.

Outstanding features of the Relay Terminal G70D-SOC08 OMRON

• Slim terminal block is just 135 × 40 mm (W × D).

• Independent contacts and short bars allow easy common connections.

• An Expansion Terminal Block can be mounted for power line connections.

• M3.5 fork-type crimp terminals (with a maximum terminal width of 6.2 mm) can be used.

• Lever mechanism allows Relays to be installed and removed easily without tools.

• Relay models and power MOSFET Relay models are available.

• Equipped with operation indicators.

• Can be combined with a DRT2-OD32ML I/O Terminal for DeviceNet connectivity or an SRT2-VOD16ML Connector Terminal for CompoBus/S connectivity.

• Built-in diode absorbs coil surge.

• Mount either to DIN rail or via screws.
