PN-50N Pen Type Load Cell
Còn hàng
Liên hệ
- ID: 26723
Product Information

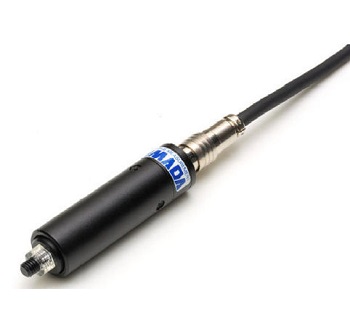

PN-50N Pen Type Load Cell
PN-50N Pen Type Load Cell is designed pen-shaped. It is ideal for measuring control force of small samples. The capacity is up to 50N (5kgf).
Feature PN-50N Pen Type Load Cell Imada:
Strain gauge tape load cell
Pen shaped load cell.
Ideal for measuring control force of small samples.
Amplifier is necessary to read load values and output them to external equipment.
Specifications for PN-50N Pen Type Load Cell:
| Model | PN-50N |
|---|---|
| Capacity | 50N |
| Rated output | 1mV / V+/-10% |
| Nonlinearity | 0.3%R.O. |
| Hysteresis | 0.3%R.O. |
| Recommended voltage(Allowable applied voltage) | 5V DC or AC(8V DC or AC) |
| Safe overload rating | 150%R.L. |
| Working environment( allowable temperature) | 0~+50 degree Celsius(-10 degree Celsius ~+60 degree Celsius) |
| Temperature influence for 0 point | 0.05%/ degree Celsius |
| Temperature influence for output | 0.05%/ degree Celsius |
| Weight | Approx. 50g |
| Cable | Approx. 2m |
| Mount screw | M6 P1.0 |
| Dimension | Refer to the dimension |
