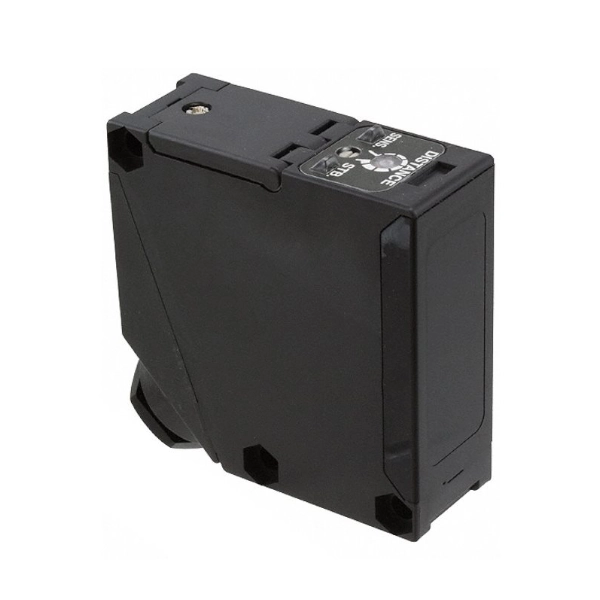

Photoelectric Sensor Panasonic EQ-500
NGAN ANH PHAT CO.,LTD chuyên Cung cấp dòng sản phẩm Photoelectric Sensor Panasonic EQ-500 chính hãng tại thị trường Việt Nam.
Specifications
EQ-500 ( DC type )
| EQ-512 | EQ-511 | EQ-512T | EQ-511T | |
|---|---|---|---|---|
| without timer | with timer | |||
| Sensor type | Reflective photoelectric sensor | |||
| Sensing distance | 100cm | 250cm | 100cm | 250cm |
| Sensing range | 10 – 100cm | 10 – 250cm | 10 – 100cm | 10 – 250cm |
| Standard detectable object | White drawing paper, 20 x 20cm | |||
| Detectable target | Transparent, opaque | |||
| Hysteresis | = 10% or less of operation distance | |||
| Response time | Max. 2ms | |||
| Timer function | — | 0.1 – 5s | ||
| Output/Transistor | Max. 100mA, NPN and PNP | |||
| Wavelength of emitting diode | Infrared LED, 880nm | |||
| Rated current consumption without load | Max. 45mA | |||
| Housing material | Plastic | |||
| Protection | IP67 | |||
| Physical size (H x W x D) | 68 x 26 x 68mm | |||
| Connection method | Screw-on terminal connection | |||
| Operating voltage | 12 – 24V DC (± 10%) | |||
| Usable ambient temperature | -20°C – +55°C | |||
| Weight (approx.) | 85g | |||
