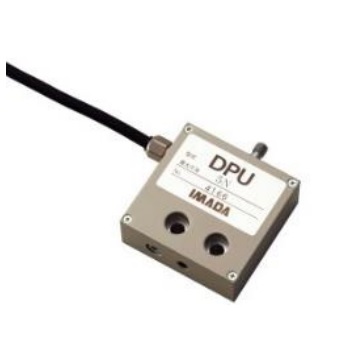

Load Cell (Force Sensor) DPU IMADA
– Strain gauge type force sensor
– Easy to mount on your equipment with screws.
– For both tension and compression.
– Amplifier is necessary to read load values and output them to external equipment.

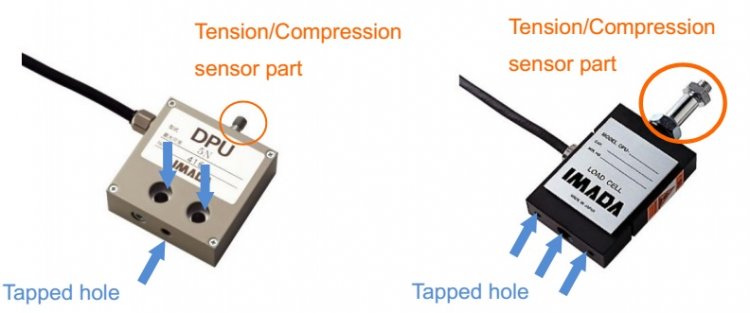

The compact design is ideal for mounting on your external equipment. The capacity is from 2N (200gf) to 500N (50kgf).
Model:
| Model | eZ-Connect series model | Capacity | Safe overload rating | Thread |
|---|---|---|---|---|
| DPU-2N | eDPU-2N | 2N | 150% | M6 |
| DPU-5N | eDPU-5N | 5N | ||
| DPU-10N | eDPU-10N | 10N | 200% | |
| DPU-20N | eDPU-20N | 20N | ||
| DPU-50N | eDPU-50N | 50N | ||
| DPU-100N | eDPU-100N | 100N | ||
| DPU-200N | eDPU-200N | 200N | ||
| DPU-500N | eDPU-500N | 500N |
| Model | DPU-2N~500N |
|---|---|
| Capacity | Please refer to the model list. |
| Rated output | 1mV / V±10%(2N, 5N is 0.9~1.25 mV/ V±10%) |
| Nonlinearity | 0.12%R.O. |
| Hysteresis | 0.12%R.O. |
| Recommended voltage(allowable applied voltage) | 5V DC (12V DC) |
| Safe overload rating | Please refer to the model list. |
| Working environment( allowable temperature) | 0~+50 degree Celsius(-10~+60 degree Celsius) |
| Temperature influence for 0 degree | 0.02%/ degree Celsius |
| Temperature influence for output | 0.01%/ degree Celsius |
| Weight | Approx. 325g |
| Cable | 2m(with a connector) |
| Dimension | Refer to dimensions. |
The compact design is ideal for mounting on your external equipment. The capacity is from 1000N (100kgf) to 20kN (2000kgf).
Model:
| Model | eZ-Connect series model | Capacity | Safe overload rating | Thread |
|---|---|---|---|---|
| DPU-1000N | eDPU-1000N | 1000N | 240% | M10 |
| DPU-2000N | eDPU-2000N | 2000N | 120% | |
| DPU-5000N | eDPU-5000N | 5000N | ||
| DPU-10kN | eDPU-10kN | 10kN | 120% | N/A* |
| DPU-20kN | eDPU-20kN | 20kN |
| Model | DPU-1000N~20kN |
|---|---|
| Capacity | Please refer to the model list. |
| Rated output | 2mV/ V±1% |
| Nonlinearity | 0.05%R.O. |
| Hysteresis | 0.05%R.O. |
| Recommended voltage(allowable applied voltage) | 10V DC(18V DC) |
| Safe overload rating | Please refer to the model list. |
| Working environment | -10~+70 degree Celsius |
| ( allowable temperature) | (-20~+80 degree Celsius) |
| Temperature influence for 0 degree | 0.01%/ degree Celsius |
| Temperature influence for output | 0.01%/ degree Celsius |
| Weight | Approx. 800g |
| DPU-10kN:Approx.1.7kg | |
| DPU-20kN:Approx.2.3kg | |
| Cable | 3m(with a connector) |
| Dimension | Refer to dimensions. |
