Coin Shaped Load Cell

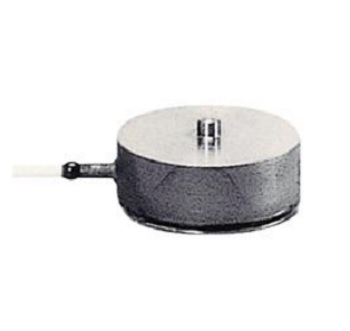

LM series Coin Shaped Load Cell. A small load cell for compression. Ideal to set on a narrow space. The capacity is from 10N (1kgf) to 20kN (2000kgf).
Feature
– Strain gauge type load cell.
– A coin-sized small load cell.
– For compression test only.
– Amplifier is necessary to read load values and output them to external equipment.
Model LM Series:
| Model | eZ-Connect series model | Capacity |
|---|---|---|
| LM-10N | eLM-10N | 10N |
| LM-20N | eLM-20N | 20N |
| LM-50N | eLM-50N | 50N |
| LM-100N | eLM-100N | 100N |
| LM-200N | eLM-200N | 200N |
| LM-500N | eLM-500N | 500N |
| LM-1000N | eLM-1000N | 1000N |
| LM-2000N | eLM-2000N | 2000N |
| LM-5000N | eLM-5000N | 5000N |
| LM-10kN | eLM-10kN | 10kN |
| LM-20kN | eLM-20kN | 20kN |
Specifications for Coin-Shaped Load Cell LM series
| Model | LM series |
|---|---|
| Capacity | Refer the model rist |
| Rated output | 10N～2000N：1.0mV/V±20% |
| 5000N,10kN：1.0mV/V±30% | |
| 20kN：1.5mV/V±20% | |
| Nonlinearity | 10N～2000N：0.5%R.O |
| 5000N,10kN：1.0%R.O | |
| 20kN：2.0%R.O | |
| Hysteresis | 10N~2000N：0.5%R.O |
| 5000N and 10kN：1.0%R.O | |
| 20kN：2.0%R.O | |
| Recommended voltage (Allowable voltage) |
10N~2000N:1~3V ACorDC(5V ACorDC) |
| 5000N~20kN：5V or less ACorDC(7V ACorDC) | |
| Safe overload rating | 10N~2000N：200%R.O |
| 5000N~20kN：120%R.O | |
| Working environment(Allowable temperature) | 10N~2000N：0~50 degree Celsius(-10~60 degree Celsius) |
| 5000N~20kN：-5~50 degree Celsius(-10~60 degree Celsius) | |
| Temperature Influence for 0 point | 0.05%/degree Celsius |
| Temperature Influence for output | 0.05%/degree Celsius |
| Cable | 10N~2000N：Approx. 2m |
| 5000N~20kN：Approx.3m | |
| Dimensions | Refer the dimension |
