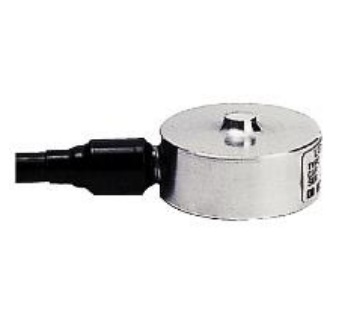

LC Series High Accuracy Coin Shaped Load Cell
LC series High Accuracy Coin Shaped Load Cell. It has small shape body and high accuracy. The capacity is from 500N (50kgf) to 20kN (2000kgf).
Feature
– Strain gauge type load cell.
– High accuracy.
– For compression test only.
– Amplifier is necessary to read load values and output them to external equipment.
Model LC Series:
| Model | eZ-Connect series model | Capacity |
|---|---|---|
| LC-500N | eLC-500N | 500N |
| LC-1000N | eLC-1000N | 1000N |
| LC-2000N | eLC-2000N | 2000N |
| LC-5000N | eLC-5000N | 5000N |
| LC-10kN | eLC-10kN | 10kN |
| LC-20kN | eLC-20kN | 20kN |
Specifications for LC series High-Accuracy Coin-Shaped Load Cell:
| Model | LC series |
|---|---|
| Capacity | Refer to the model list |
| Rated output | 2.0mV/V+/-0.25% |
| Nonlinearity | 0.15%R.O |
| Hysteresis | 0.1%R.O |
| Recommended voltage(allowable voltage) | Lower or equal to 8V AC or DC (12V AC or DC) |
| Safe overload rating | 150% |
| Working environment(allowable temperature) | 0~+70 degree Celsius(-15~+80 degree Celsius) |
| Temperature influence for 0 point | 0.005%/ degree Celsius |
| Temperature influence for output | 0.01%/ degree Celsius |
| Cable | Approx.5m |
| Dimensions | Refer to the dimension |
