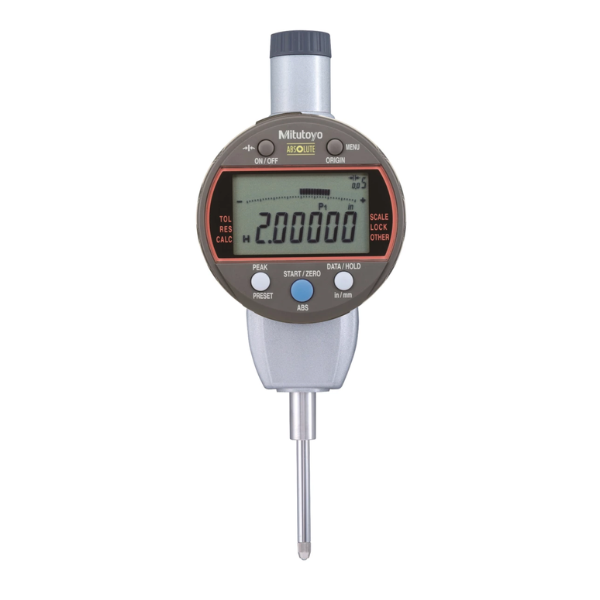

Digital Indicator, Calculation ID-C Mitutoyo 543-592B-10 25.4mm

Ngan Anh Phat Co., Ltd. specializes in supplying the Digital Indicator ID-C No. 543-592B-10 Series 543 from Mitutoyo, originating from Japan, in the Vietnamese market.

This indicator allows you to use a calculation function for the measured value

Ax+B+Cx^-1

• The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
• Coefficients A,B and C are freely definable. X = displacement of the plunger
• Analogue bar graph in the display (14 different scales switchable)
• GO/±NG tolerance judgement function
• MAX/MIN/RANGE function to measure peak values
• A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably
• Easy indicator setup  via a setup menu
• A USB interface box can be used to set up the indicator from PC via dedicated software
