Product Information

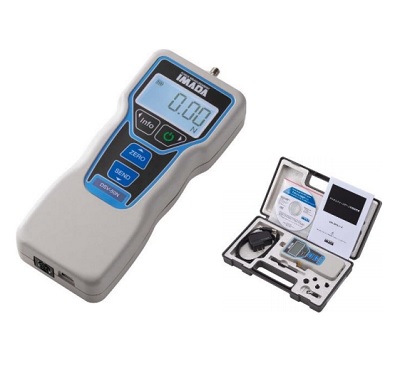

Digital force gauge for handheld use DSV
In addition to great usability of DST series, this advanced model digital force gauge is equipped with more functions (tilt-sensing, internal memory and continuous peak) for efficient and reliabile hand-held use. Capacity available from 2N (200gf) to 1000N (100kgf).
DSV is designed for handheld use : Hand fitting design & the lightweight body.
DSV has a tilt-sensing function, sounding an alarm when it sense tilt from the preset position.
DSV is equipped with internal memory up to 1000 point.
Using a supplied software (Force logger) & USB cable, you can easily transfer data from DSV to PC.
You can connect maximum 4 pcs of DSV to a PC at the same time, for easier management. (You need a dedicated optional software.)
DSV-2N/5N/20N/50N has a mechanical stopper for preventing overload.
You can charge DSV from a PC or a mobile battery.
Battery life lasts 30 hours at maximum when its backlight is off.
Model DSV:
| Model | Capacity | Display | Resolution | Thread | Accessory attachments |
|---|---|---|---|---|---|
| DSV-2N | 2N | 2.000N | 0.001N | M6 | A1-A6 |
| DSV-5N | 5N | 5.000N | 0.001N | ||
| DSV-20N | 20N | 20.00N | 0.01N | ||
| DSV-50N | 50N | 50.00N | 0.01N | ||
| DSV-200N | 200N | 200.0N | 0.1N | S1-S6 | |
| DSV-500N | 500N | 500.0N | 0.1N | ||
| DSV-1000N | 1000N | 1000N | 1N | SR1-S6 |
Specifications for digital force gauge for handheld use DSV series:
| Model | DSV |
|---|---|
| Accuracy | ±0.2％F.S 1digit |
| Unit | N(mN,kN) , kg(g), lbf （*1） |
| Display | Signed 4-digit LCD |
| Sampling rate | Max. 1000 data / sec (1000Hz) |
| Battery | Approx.30 hours (when back light is off) Approx. 14 hours (when back light is on) (*needs 4.5 hours for full charge) |
| Overload | Approx. 200％F.S. |
| Power | Nickel-Metal Hydride battery (NiMH battery), USB charge (PC, mobile battery, AC adapter) |
| Operating environment | Temperature：0 – 40℃ Humidity：20 – 80％RH |
| Function | Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/Reminder for calibration schedule/Overload alarm/Tilt-sensing alarm/ Continuity peak mode(*2)/ Internal memory (1000 points) |
| Output | USB/RS232C |
| Overload alarm | Alarm to notify “near-overload state”: Approx.90%F.S. (Alarm sound) Alarm to notify “overloaded state”: Approx.110%F.S. (Alarm sound/Indication blinking) |
| Weight | Approx. 460ｇ (*3) |
| Dimensions | Refer to Dimensions below. |
| Accessory | Force Logger(Data capturing software)／USB cable／ ACAdapter／Attachment(*4)／Carrying case／Instruction manual／Inspection certificate |
