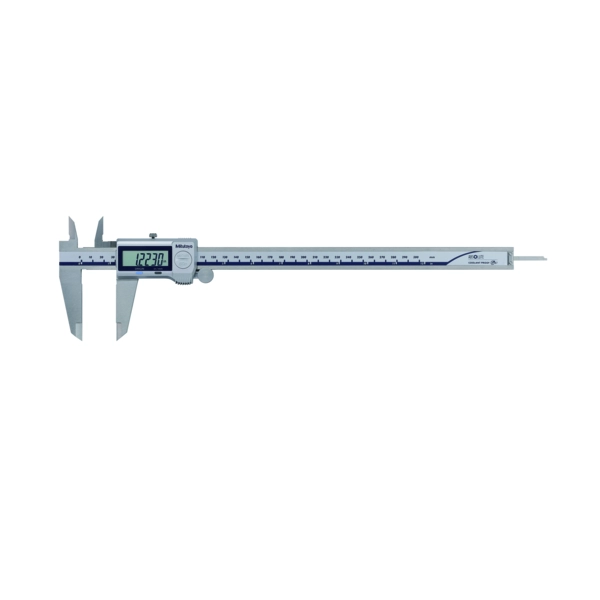

Digital ABS Caliper CoolantProof Mituyoto 500-764-20 0-12 '' IP67
Ngan Anh Phat Co., Ltd. specializes in providing genuine Mituyoto 500-764-20 digital calipers directly from the manufacturer, Mitutoyo, originating from Japan, to the Vietnamese market.
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
FEATURES MODEL 500-764-20 0-12'' IP67
| Delivered: |
Including box, SR44 battery, certificate of inspection |
| Range: |
0 – 8 '' |
| Depth bar: |
flat |
| Thumb roller: |
Yes |
| Data output: |
|
| Max. Permissible Error E MPE: |
±0,0015″ |
| Max. Permissible Error S MPE: |
±0,0025″ |
| Digital step: |
0,0005″/0,01 mm |
| Max. response speed: |
Unlimited |
| Display: |
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm) |
| Delivered: |
In a case, including 1 SR-44 battery |
| ORIGIN (ABS-Zero): |
Yes |
| Auto Power OFF after 20 min. non use: |
Yes |
| Low voltage alarm: |
Yes |
| Battery life: |
Approx. 5 years under normal use |
| Mass: |
345 g |

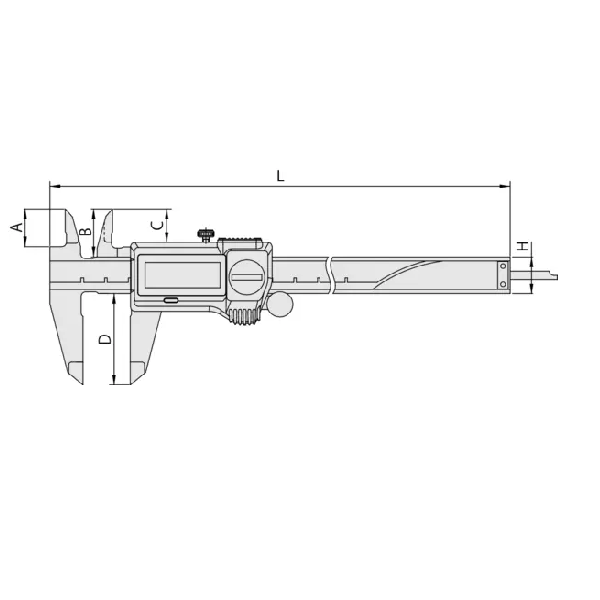

DIMENSIONS
| L: |
404 mm |
| A: |
22 mm |
| B: |
27.5 mm |
| C: |
19.8 mm |
| D: |
64 mm |
| H: |
20 mm |
Brand Overview MITUTOYO
