Product Information

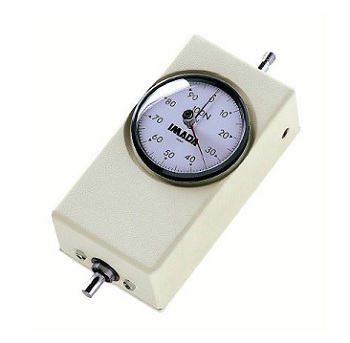

Compact Model Mechanical Force Gauge UKT / UKK series
The smallest mechanical force gauge among IMADA mechanical gauges. It is suitable to mount on your production line.The accuracy is +/- 0.3% F.S. or less. Available capacity from 20N (2kgf) to 300N (30kgf).
– Small in size as two third as the standard type gauge.
– UKT is for tension, UKK is for compression.
– Peak hold function.
– Zero adjustment for tare weight.
| Model | UKT series | UKK series |
|---|---|---|
| Accuracy | +/-0.3% F.S. | |
| Direction of measurement | For tension only | For compression only |
| Stroke | 10mm | |
| Unit of measurement | Refer to the table below | |
| Reading method | Real-time track or Peak-hold | |
| Divisions | 100 lines* | |
| Operating temperature | 0 to +40 degree Celcius | |
| Weight | Approx. 300g | |
| Accessory | 4 kinds of attachments for tension | 5 kinds of attachments for compression |
| Inspection certificate, Instruction manual, Carrying case | ||
| UKT series (For tension only) / UKK series (For compression only) | ||||
|---|---|---|---|---|
| Model | Capacity | 1 division | Thread | |
| UKT-20N | UKK-20N | 20N | 0.2N | M6 |
| UKT-30N | UKK-30n | 30N | 0.25N | |
| UKT-50N | UKK-50N | 50N | 0.5N | |
| UKT-100N | UKK-100N | 100N | 1N | |
| UKT-200N | UKK-200N | 200N | 2N | |
| UKT-300N | UKK-300N | 300N | 2.5N | |
| Model(NOT available in Japan) | Capacity | 1 division | Thread | |
| UKT-2K | UKK-2K | 2kgf | 20gf | M6 |
| UKT-3K | UKK-3K | 3kgf | 25gf | |
| UKT-5K | UKK-5K | 5kgf | 50gf | |
| UKT-10K | UKK-10K | 10kgf | 100gf | |
| UKT-20K | UKK-20K | 20kgf | 200gf | |
| UKT-30K | UKK-30K | 30kgf | 250gf | |
| Model(NOT available in Japan) | Capacity | 1 division | Thread | |
| UKT-5lbf | UKK-5lbf | 5lbf | 0.05lbf | M6 |
| UKT-10lbf | UKK-10lbf | 10lbf | 0.1lbf | |
| UKT-20lbf | UKK-20lbf | 20lbf | 0.2lbf | |
| UKT-30lbf | UKK-30lbf | 30lbf | 0.25lbf | |
| UKT-50lbf | UKK-50lbf | 50lbf | 0.5lbf | |
